MicroFit MFHSU70173 Replaces the Pall UE310AP08Z

MICROFIT MFHSU70173
MICROFIT MFHSU70173

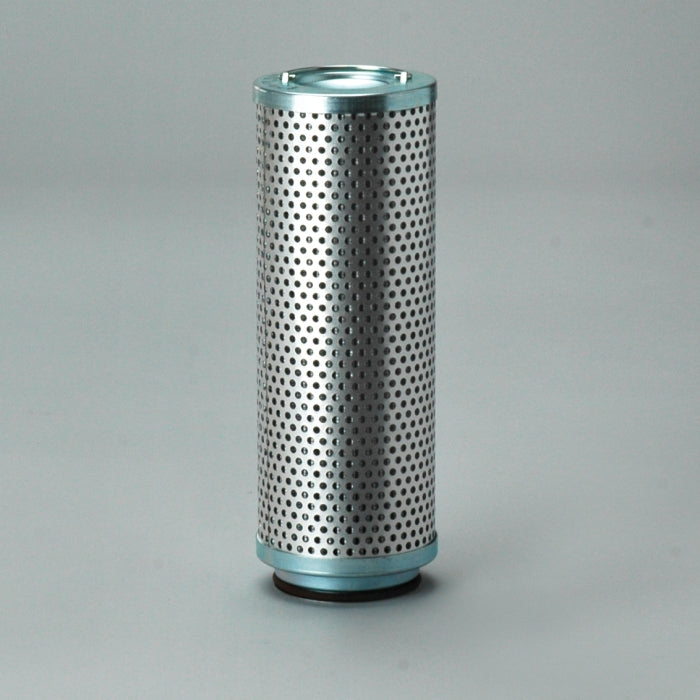

Representative product image Product image feedback

MicroFit® UltraGen III MFHSU70173 Suction Filter | Replaces the Pall UE310AP08Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70173 is the MICROFIT® approved replacement to the Pall UE310AP08Z. Engineered and manufactured in Great Britain the MFHSU70173

Price Match
$148.00
1.85 lbs
0.051 ft³
352 pcs
United Kingdom
8421.99.90
1.06 lbs
0.077 ft³
352 pcs
United States
8421.29.80.90
0.86 lbs
0.051 ft³
352 pcs
Italy
8421.99.90
352 pcs
United States
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70173 is the MICROFIT® approved replacement to the Pall UE310AP08Z. Engineered and manufactured in Great Britain the MFHSU70173

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 1/8"
Inner Diameter 2 1/2"
Length 9 1/8"
Seal MaterialViton
Temperature Range -10 - +250°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE310AP08Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Suction Filter
Outer Diameter 3.11 in
Inner Diameter 2.5 in
Length 9.15 in
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -10 - +250°F
