Pall UE210AT20Z Replaces the Pall UE210AT20H

Pall UE210AT20Z

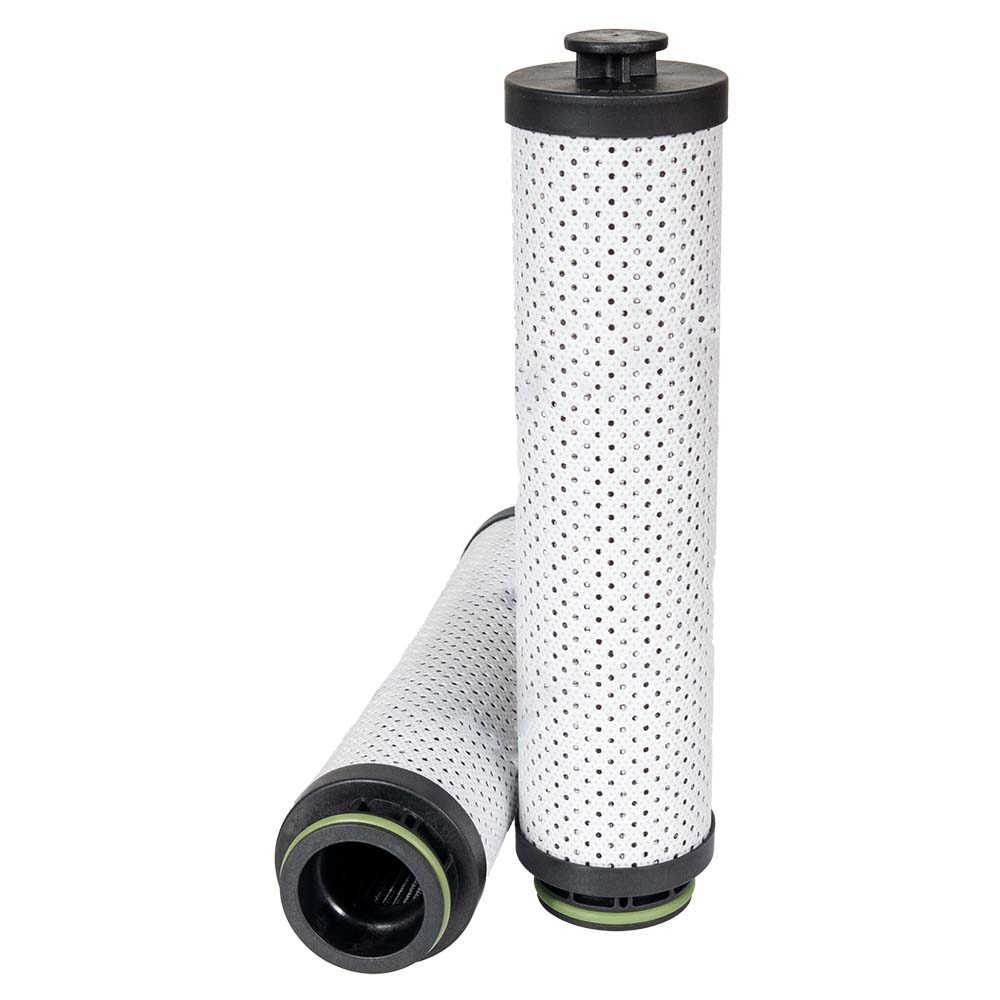

Representative product image Product image feedback

Pall UE210AT20Z Replaces the Pall UE210AT20H

UE210AT20Z
Pall
Pall UE210AT20H
Description

ELEMENT UE210AT20Z

ELEMENT UE210AT20Z

Brand: Pall
Price Matched
$466.00
8421.99.90
United States
0.93 lbs
8421.99.90
Italy
Shipping Terms

Description

ELEMENT UE210AT20Z

ELEMENT UE210AT20Z

Specification

StyleSuction Filter
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 2.13 in
Inner Diameter 1.67 in
Length 21.1 in
MediaGlass Fiber (Anti-Static)
Flow DirectionIN-OUT
Seal MaterialNitrile
Temperature Range -20 - +210°F

Genuine Product

Find out more
Pall Brand Logo

Pall Product

Genuine Pall UE210AT20Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Suction Filter
Outer Diameter 2.13 in
Inner Diameter 1.67 in
Length 21.1 in
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -20 - +210°F
