Summary

MicroFit MFHSU70226 Replaces the Pall UE210AP04Z

UE210AP04Z
UE210AP04Z

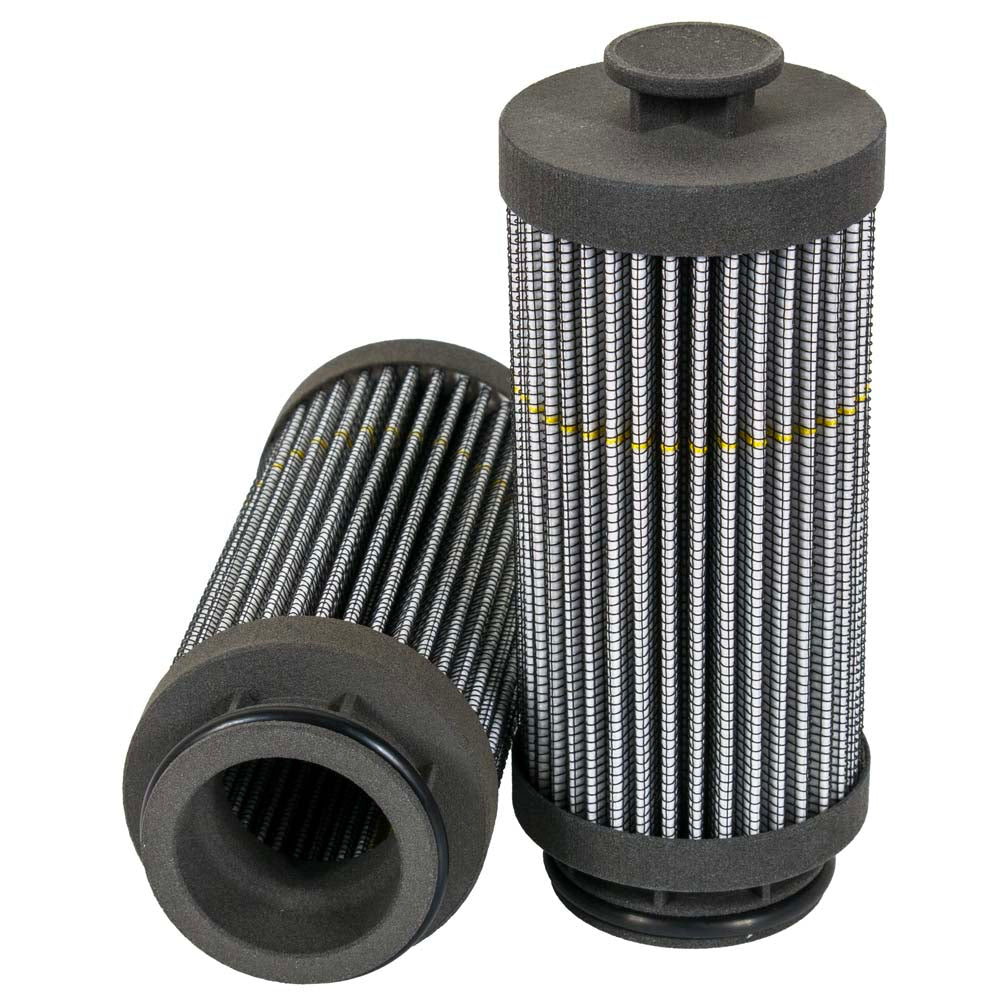

Representative product image Product image feedback

MicroFit® UltraGen III MFHSU70226 Suction Filter | Replaces the Pall UE210AP04Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70226 is the MICROFIT® approved replacement to the Pall UE210AP04Z. Engineered and manufactured in Great Britain the MFHSU70226

Price Match
$85.00
0.68 lbs
0.014 ft³
United Kingdom
8421.99.90
0.31 lbs
0.014 ft³
Italy
8421.99.90
0.26 lbs
0.024 ft³
France
8421.99.90
United States
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70226 is the MICROFIT® approved replacement to the Pall UE210AP04Z. Engineered and manufactured in Great Britain the MFHSU70226

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 2 1/8"
Inner Diameter 1 11/16"
Length 5 1/4"
Seal MaterialViton
Temperature Range -10 - +250°F
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE210AP04Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Suction Filter
Outer Diameter 2.13 in
Inner Diameter 1.67 in
Length 5.24 in
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -10 - +250°F
