Stauff SS-050-B-25-B Replaces the Stauff SS050B25B

Stauff SS050B25B
Representative product image Product image feedback

Stauff SS-050-B-25-B Replaces the Stauff SS050B25B

SS-050-B-25-B
Stauff
Stauff SS050B25B
Description

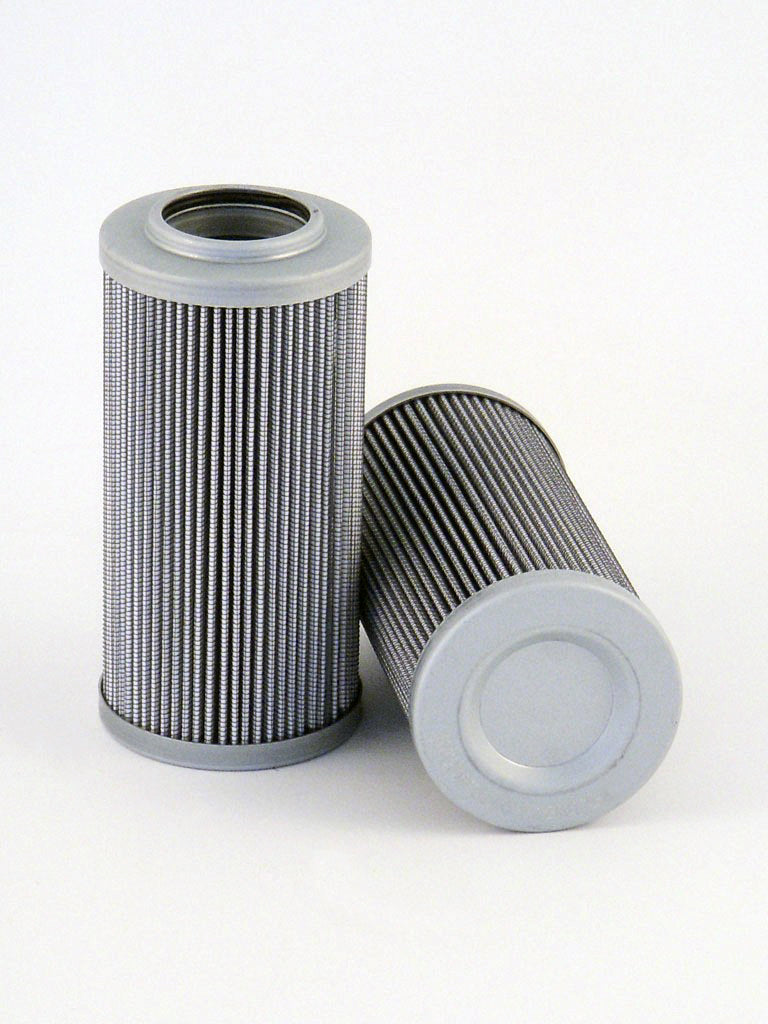

Replacement Filter Element for Pressure Filters Micron Rating: 25 µm Material: Stainless Mesh Outer Diameter (mm): 79,8 Inner Diameter (mm): 42,2 Length (mm): 160 Sealing: NBR, β ratio >2

Brand: Stauff
Price Matched
$293.00
1.34 lbs
8421.99.90
Germany
2.63 lbs
8421.99.90
United Kingdom
1.19 lbs
8421.99.90
Italy
1.28 lbs
8421.99.90
France
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 25 µm Material: Stainless Mesh Outer Diameter (mm): 79,8 Inner Diameter (mm): 42,2 Length (mm): 160 Sealing: NBR, β ratio >2

Specification

StylePressure Filter
Efficiency 125µ
Outer Diameter 3.15 in
Inner Diameter 1.66 in
Length 6.18 in
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 435 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff SS-050-B-25-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Pressure Filter
Outer Diameter 3.15 in
Inner Diameter 1.66 in
Length 6.18 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Nitrile
Temperature Range -20 - +210°F
