Summary

MICROFIT MFHLP33356 Replaces the Stauff SS030E05B4

MICROFIT MFHLP33356

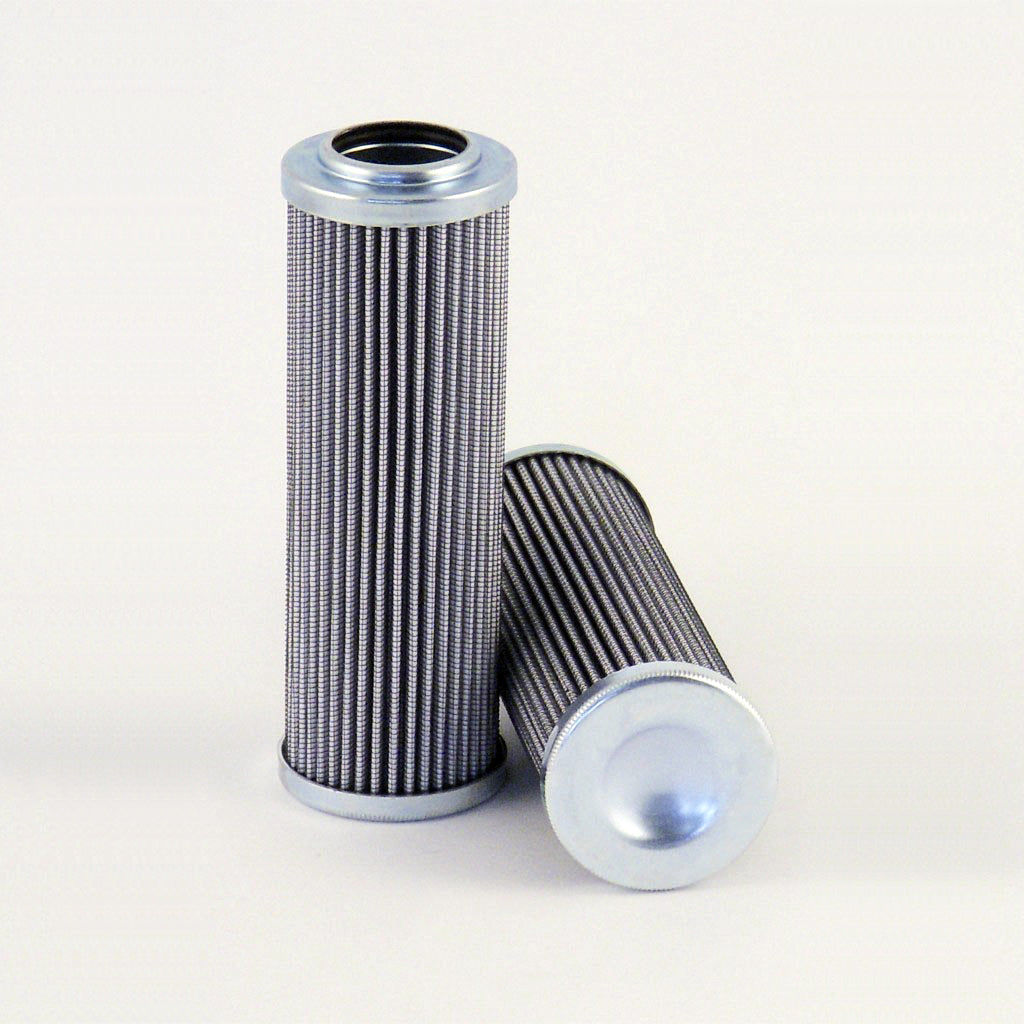

Representative product image Product image feedback

MICROFIT® UltraGen III MFHLP33356 Replaces the Stauff SS030E05B4

MFHLP33356
MICROFIT
Stauff SS030E05B4
Description

The MICROFIT® UltraGen III MFHLP33356 is the MICROFIT® approved replacement to the Stauff SS030E05B4. Engineered and manufactured in Great Britain the MFHLP33356

Brand: MICROFIT
Price Matched
$80.00
2.74 lbs
8421.99.90
United Kingdom
1.24 lbs
8421.99.90
Italy
0.79 lbs
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP33356 is the MICROFIT® approved replacement to the Stauff SS030E05B4. Engineered and manufactured in Great Britain the MFHLP33356

Specification

StylePressure Filter
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 8.86 in
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 435 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

Approved Product

Find out more
Stauff Brand Logo

Same Fit-Form & Function

As the Genuine Stauff SS030E05B4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 8.86 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Nitrile
Temperature Range -20 - +210°F
