Mann Filter WH 10 004 Replaces the SF Filter SPH 12540

SPH 12540
SPH 12540
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

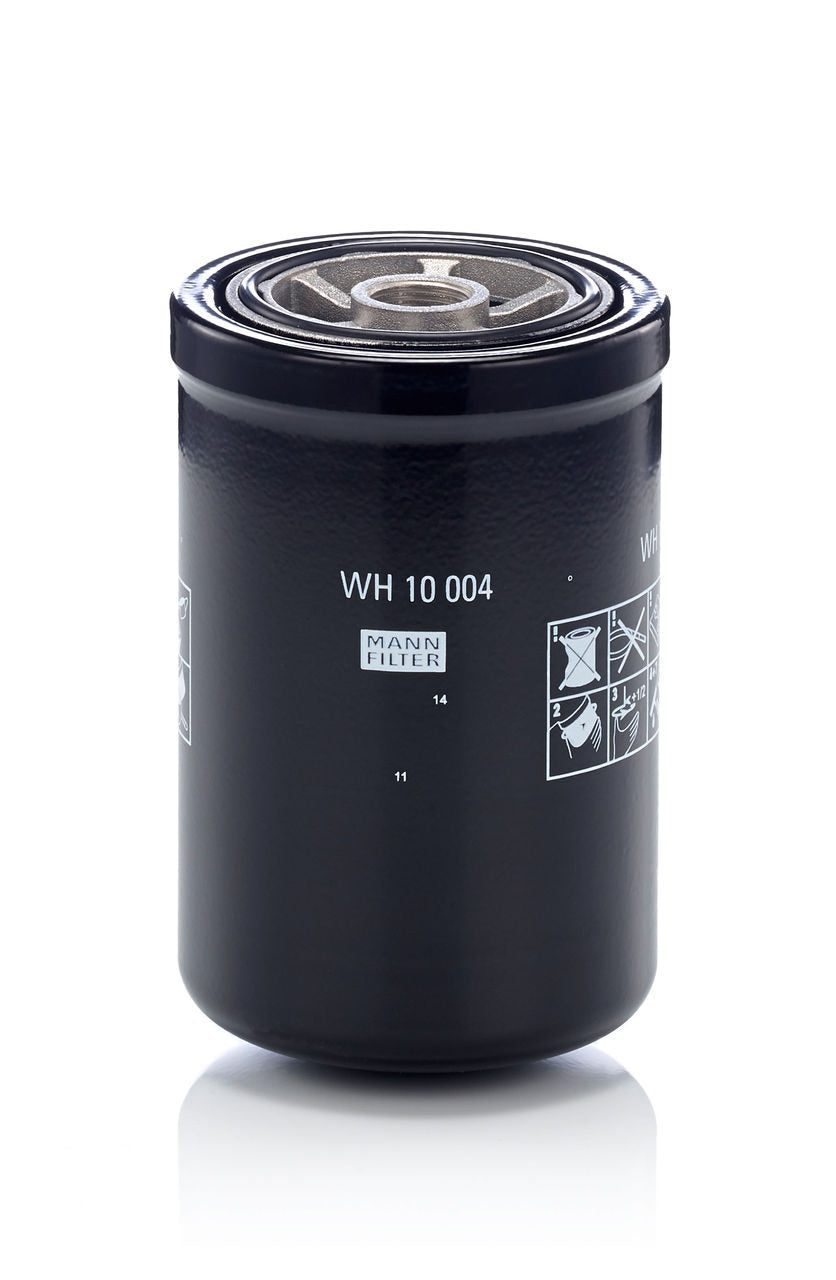

Mann Filter WH 10 004 Oil Filter | Replaces the SF Filter SPH 12540

Brand: Mann Filter
Description

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

Price Match
$85.00
409 pcs
Italy
8421.29.80
2.29 lbs
0.063 ft³
409 pcs
France
8421.99.90
2.01 lbs
0.057 ft³
409 pcs
Italy
8421.29.80.90
0.42 lbs
0.021 ft³
409 pcs
Italy
8421.99.90
0.93 lbs
409 pcs
United Kingdom
8421.99.90
Shipping Terms

Description

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

Specification

StyleOil Filter
Dimension A 3 3/4"
Dimension B 2 1/2"
Dimension C 2 3/4"
Dimension G 13/16-16 UN
Dimension H 6"
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter SPH 12540

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Special Filter
Outer Diameter 2.72 in
Inner Diameter 1.35 in
Length 5.0 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Viton
Temperature Range -10 - +250°F
