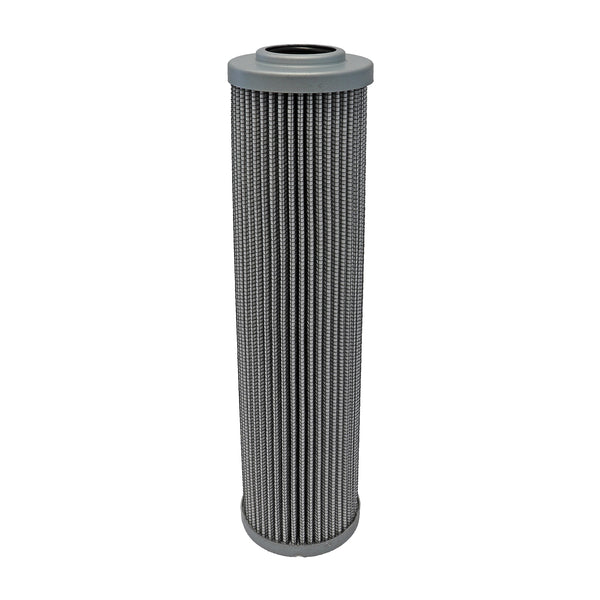

Stauff SP-160-E-05-B/4 Replaces the Stauff SP160E05B4
Stauff SP-160-E-05-B/4 Pressure Filter
SP-160-E-05-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 55,7 Length (mm): 428 Sealing: NBR, β ratio >200
Regular price
$249.00
Unit price
per
Germany
8421.99.90
7.78 lbs
0.14 ft³
United Kingdom
8421.99.90
4.01 lbs
0.287 ft³
France
8421.99.90
3.55 lbs
0.139 ft³
Italy
8421.99.90
Description
Replacement Filter Element for Pressure Filters Micron Rating: 5 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 55,7 Length (mm): 428 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 3 3/4" |
| Inner Diameter | 2 1/4" |
| Length | 16 7/8" |
| Δ Collapse Pressure | 362.6 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff SP-160-E-05-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
