Stauff SP-090-F-20-B/4 Replaces the Stauff SP090F20B4
Stauff SP-090-F-20-B/4 Replaces the Stauff SP090F20B4
SP-090-F-20-B/4
Stauff
Stauff SP090F20B4
Stauff
Stauff SP090F20B4
Description

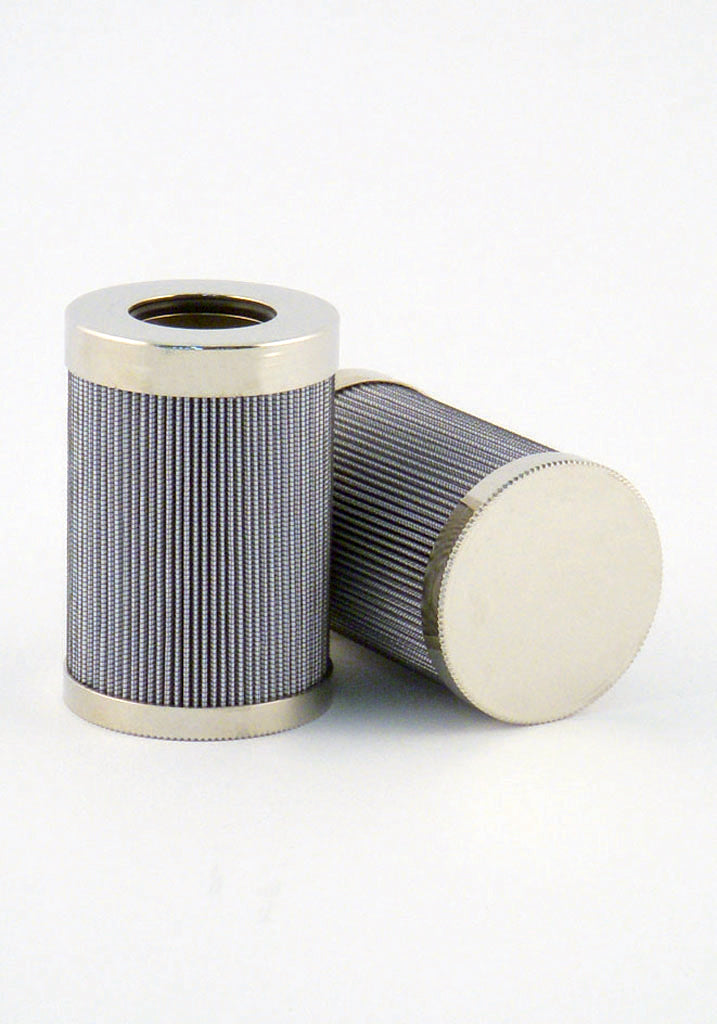

Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 80 Inner Diameter (mm): 43,5 Length (mm): 329 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$403.00
Unit price
per
4.96 lbs
8421.99.90
Germany
3.84 lbs
8421.99.90
United Kingdom
8.46 lbs
8421.99.90
Italy
4.67 lbs
8421.99.90
France
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 80 Inner Diameter (mm): 43,5 Length (mm): 329 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 3.07 in |
| Inner Diameter | 1.69 in |
| Length | 12.99 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 3046 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
