Stauff SL-125-B-100-B Replacement Pressure Filter

Stauff SL-125-B-100-B
Stauff SL-125-B-100-B
Representative product image Product image feedback

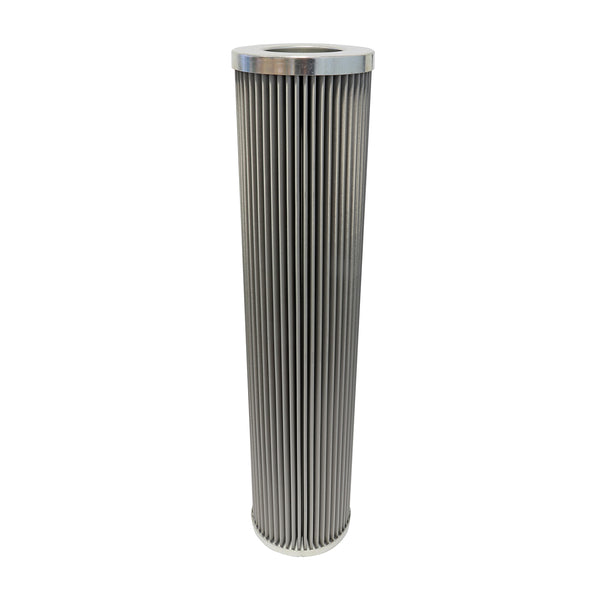

Stauff SL-125-B-100-B Pressure Filter

Brand: Stauff
Description

Replacement Filter Element for Pressure Filters Micron Rating: 100 µm Material: Stainless Mesh Outer Diameter (mm): 82,5 Inner Diameter (mm): 47,5 Length (mm): 373 Sealing: NBR, β ratio >2

Price Match
$270.00
Germany
8421.99.90
3.73 lbs
0.091 ft³
Italy
8421.99.90
3.22 lbs
0.16 ft³
France
8421.99.90
3.31 lbs
0.163 ft³
Germany
8421.23.00
United Kingdom
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 100 µm Material: Stainless Mesh Outer Diameter (mm): 82,5 Inner Diameter (mm): 47,5 Length (mm): 373 Sealing: NBR, β ratio >2

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 1100µ
Outer Diameter 3 1/4"
Inner Diameter 1 7/8"
Length 14 11/16"
Δ Collapse Pressure 435.1 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SL-125-B-100-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
100µ
Efficiency 2
Style Pressure Filter
Outer Diameter 3.27 in
Inner Diameter 1.87 in
Length 14.69 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Viton
Temperature Range -10 - +250°F
