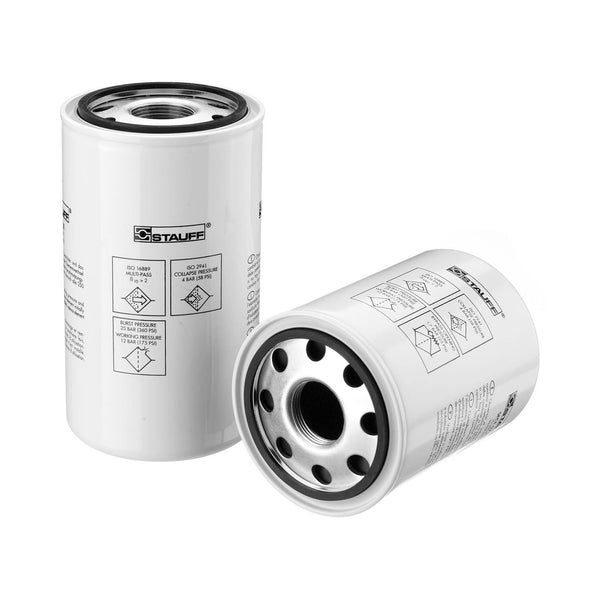

Stauff SFCT-5710-E Replaces the Stauff SFCT5710E

Stauff SFCT5710E
Stauff SFCT5710E
Representative product image Product image feedback

Stauff SFCT-5710-E Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 132 Length (mm): 180 Sealing: NBR, β ratio >2

Price Match
$55.00
Germany
8421.99.90
Germany
8421.23.00
2.73 lbs
0.105 ft³
Italy
8421.99.90
3.06 lbs
0.106 ft³
France
8421.99.90
2.97 lbs
0.126 ft³
6 pcs
Italy
8421.23.00
Germany
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 132 Length (mm): 180 Sealing: NBR, β ratio >2

Specification

StyleSpin-On Filter
MediaCellulose
Efficiency 110µ @ β2
Outer Diameter 5 1/16"
Length 7 3/16"
Thread1 1/4" BSP
Bypass Pressure 15 psi
Δ Collapse Pressure 174.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SFCT-5710-E

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Spin-On Filter
Outer Diameter 5.04 in
Inner Diameter
Length 7.17 in
Media Type Cellulose
Flow Direction
Thread 1 1/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 174 PSI
Seal Nitrile
Temperature Range -20 - +210°F
