Summary

Stauff SFCT-3625-AE Replaces the Stauff SFCT3625AE

Stauff SFCT3625AE
Stauff SFCT3625AE
Representative product image Product image feedback

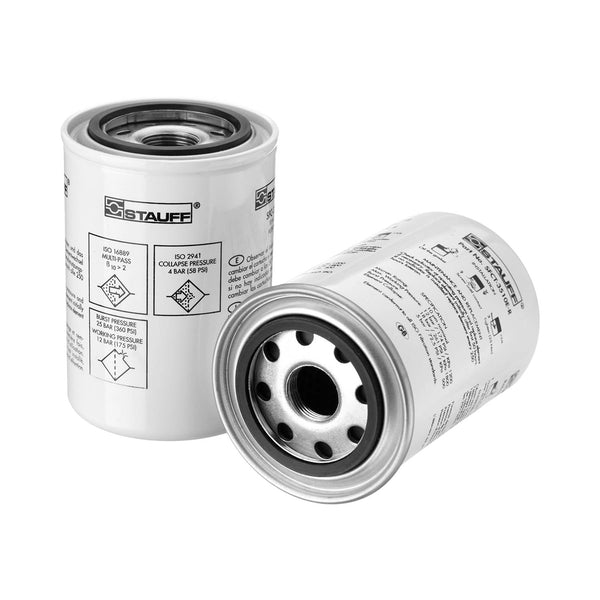

Stauff SFCT-3625-AE Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 25 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 98 Length (mm): 190 Sealing: NBR, β ratio >200

Price Match
$90.00
Germany
8421.99.90
1.83 lbs
0.069 ft³
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 25 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 98 Length (mm): 190 Sealing: NBR, β ratio >200

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 3 3/4"
Length 8 3/8"
Thread3/4" BSP
Bypass Pressure 15 psi
Δ Collapse Pressure 174.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SFCT-3625-AE

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Spin-On Filter
Outer Diameter 3.78 in
Inner Diameter
Length 8.39 in
Media Type Glass Fiber
Flow Direction
Thread 3/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 174 PSI
Seal Nitrile
Temperature Range -20 - +210°F
