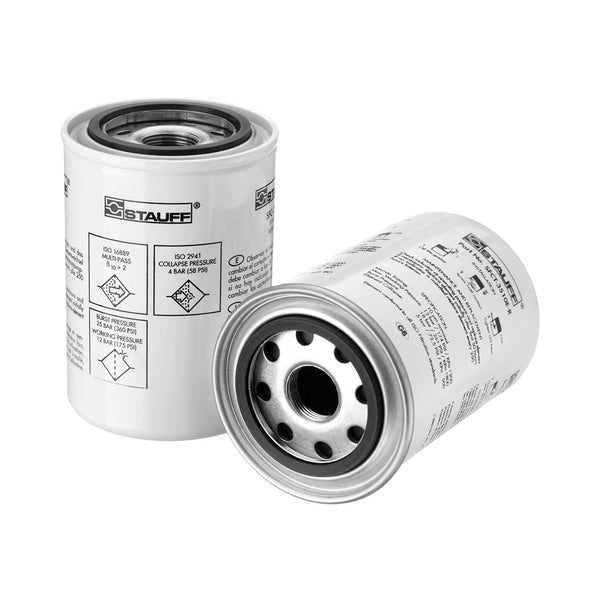

Stauff SFC-35125-E Replacement Spin-On Filter

Stauff SFC-35125-E
Stauff SFC-35125-E
Representative product image Product image feedback

Stauff SFC-35125-E Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 125 µm Material: Brass Mesh Outer Diameter (mm): 98 Length (mm): 145 Sealing: NBR, β ratio >2

Price Match
$55.00
432 pcs
Germany
8421.99.90
1.52 lbs
0.06 ft³
432 pcs
Italy
8421.29.80.90
1.54 lbs
0.048 ft³
432 pcs
Italy
8421.99.90
1.59 lbs
0.063 ft³
432 pcs
France
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 125 µm Material: Brass Mesh Outer Diameter (mm): 98 Length (mm): 145 Sealing: NBR, β ratio >2

Specification

StyleSpin-On Filter
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 3 3/4"
Length 5 13/16"
Thread3/4" BSP
Δ Collapse Pressure 174.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SFC-35125-E

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Spin-On Filter
Outer Diameter 3.78 in
Inner Diameter
Length 5.79 in
Media Type Wire Mesh
Flow Direction
Thread 3/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 174 PSI
Seal Nitrile
Temperature Range -20 - +210°F
