Summary

Stauff SF-6521 Replaces the Stauff SF6521

Stauff SF6521
Stauff SF6521
Representative product image Product image feedback

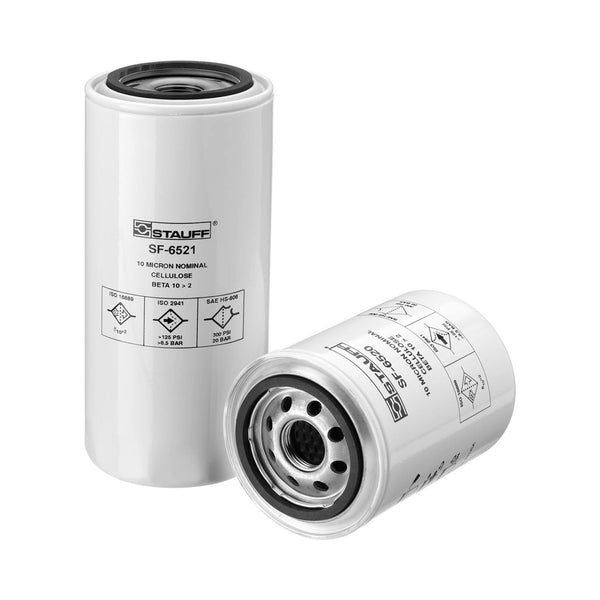

Stauff SF-6521 Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 93,2 Length (mm): 204 Sealing: NBR, β ratio >2

Price Match
$38.00
495 pcs
Germany
8421.99.90
1.48 lbs
0.087 ft³
495 pcs
Mexico
8421.29.80.90
495 pcs
United States
8421.23.00
1.94 lbs
0.096 ft³
495 pcs
France
8421.99.90
1.76 lbs
0.069 ft³
495 pcs
Italy
8421.99.90
1.59 lbs
0.098 ft³
6 pcs
495 pcs
Mexico
8421.23.00
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 93,2 Length (mm): 204 Sealing: NBR, β ratio >2

Specification

StyleSpin-On Filter
MediaCellulose
Efficiency 110µ @ β2
Outer Diameter 3 3/4"
Length 8 3/8"
Thread1"-12 UNF
Δ Collapse Pressure 174.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SF-6521

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Spin-On Filter
Outer Diameter 3.78 in
Inner Diameter
Length 8.39 in
Media Type Cellulose
Flow Direction
Thread 1"-12 UNF
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 174 PSI
Seal Nitrile
Temperature Range -20 - +210°F
