Stauff SE-045-G-20-B/4 Replaces the Stauff SE045G20B
Stauff SE-045-G-20-B/4 Pressure Filter | Replaces the Stauff SE045G20B
SE-045-G-20-B/4
Stauff

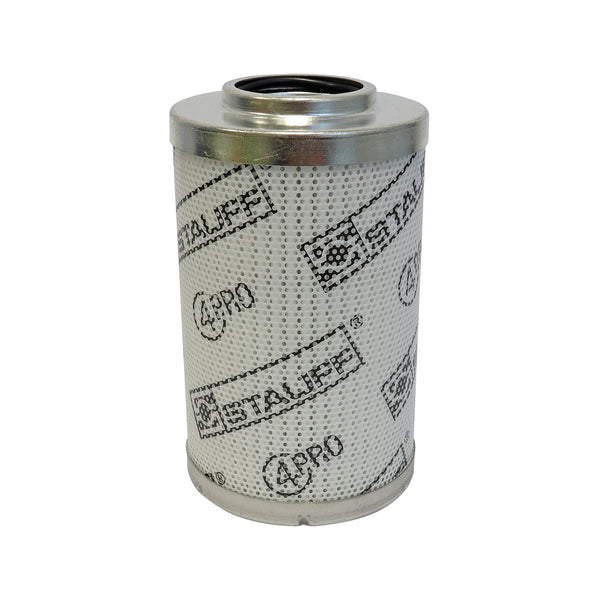

Stauff SE045G20B
Stauff
Stauff SE045G20B
Brand:
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 69 Inner Diameter (mm): 34,2 Length (mm): 116 Sealing: NBR, β ratio >200
Regular price
$73.00
Unit price
per
700 pcs
Germany
8421.99.90
0.66 lbs
0.048 ft³
700 pcs
France
8421.99.90
1.8 lbs
0.019 ft³
700 pcs
United Kingdom
8421.99.90
0.82 lbs
0.019 ft³
700 pcs
Italy
8421.99.90
0.71 lbs
0.034 ft³
700 pcs
Italy
8421.29.80.90
0.67 lbs
0.027 ft³
700 pcs
Germany
8421.23.00
700 pcs
Germany
8421.99.90
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 69 Inner Diameter (mm): 34,2 Length (mm): 116 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 2 11/16" |
| Inner Diameter | 1 3/8" |
| Length | 4 1/2" |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff SE-045-G-20-B/4
Inspected to ISO 9001:2015
