Stauff SE-030-H-03-B/4 Replaces the Stauff SE030H03B4
Stauff SE-030-H-03-B/4 Replaces the Stauff SE030H03B4
SE-030-H-03-B/4
Stauff
Stauff SE030H03B4
Stauff
Stauff SE030H03B4
Description

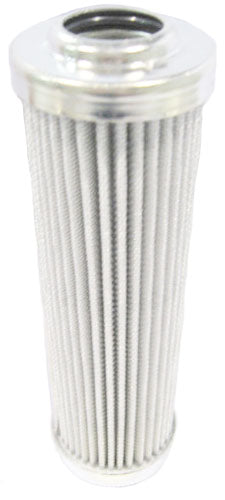

Replacement Filter Element for Pressure Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$108.00
Unit price
per
0.81 lbs
8421.99.90
Germany
0.79 lbs
8421.99.90
United Kingdom
0.79 lbs
8421.99.90
France
Description
Replacement Filter Element for Pressure Filters Micron Rating: 3 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 3µ @ β200 |
| Efficiency 2 | 5µ @ β1000 |
| Outer Diameter | 1.85 in |
| Inner Diameter | 0.87 in |
| Length | 6.02 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 3046 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
