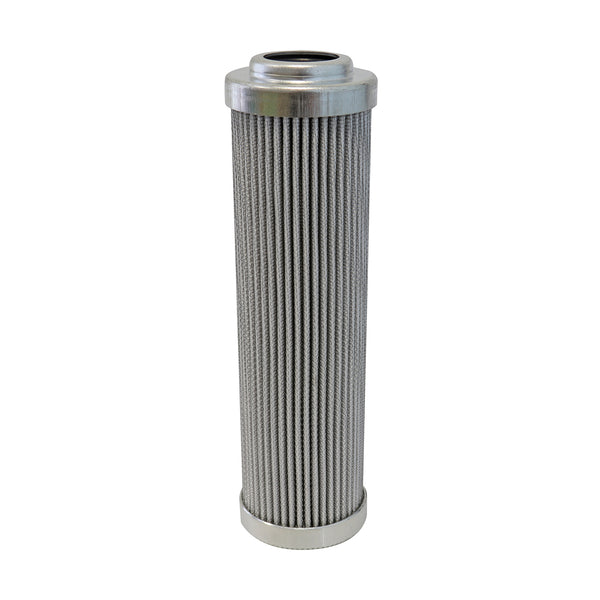

Stauff SE-030-G-20-B/4 Replaces the Stauff SE030G20B/4
Stauff SE-030-G-20-B/4 Replaces the Stauff SE030G20B/4
SE-030-G-20-B/4
Stauff
Stauff SE030G20B/4
Stauff
Stauff SE030G20B/4
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
$69.00
Shipped Friday, 11 April
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | $67.62 |
| 5 - 9 | $66.24 |
| 10 - + | $64.86 |
0.58 lbs
8421.99.90
Germany
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 47 Inner Diameter (mm): 22,2 Length (mm): 153 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 1.85 in |
| Inner Diameter | 0.88 in |
| Length | 6.02 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 290 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Genuine Product
Find out more
Stauff Product
Genuine Stauff SE-030-G-20-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
