Summary

Stauff SE-008-G-20-B/4 Replaces the Stauff SE008E20B

Stauff SE008E20B
Stauff SE008E20B
Representative product image Product image feedback

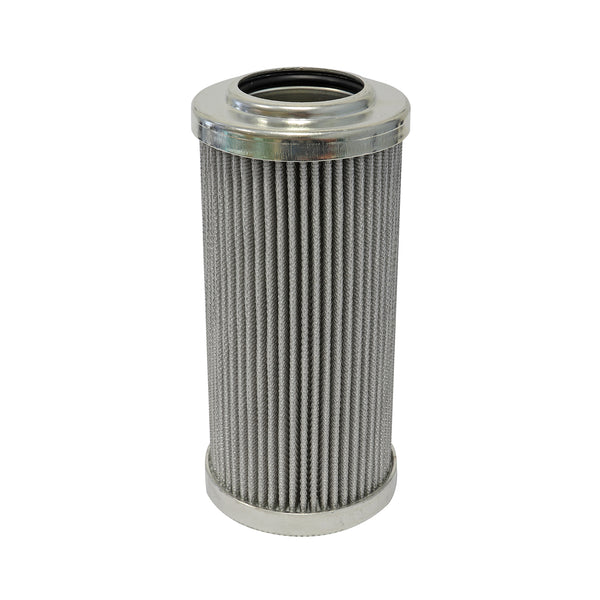

Stauff SE-008-G-20-B/4 Pressure Filter | Replaces the Stauff SE008E20B

Brand: Stauff
Description

Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 35 Inner Diameter (mm): 12,2 Length (mm): 94 Sealing: NBR, β ratio >200

Price Match
$52.00
396 pcs
Germany
8421.99.90
0.18 lbs
0.006 ft³
396 pcs
France
8421.99.90
396 pcs
Germany
8421.99.90
0.22 lbs
0.01 ft³
396 pcs
Italy
8421.29.80.90
0.39 lbs
0.004 ft³
396 pcs
United Kingdom
8421.99.90
0.2 lbs
0.004 ft³
396 pcs
Italy
8421.99.90
0.15 lbs
0.009 ft³
396 pcs
Italy
8421.23.00
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 35 Inner Diameter (mm): 12,2 Length (mm): 94 Sealing: NBR, β ratio >200

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 1 3/8"
Inner Diameter 1/2"
Length 3 11/16"
Δ Collapse Pressure 290.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SE-008-G-20-B/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 1.38 in
Inner Diameter 0.49 in
Length 3.66 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 290 PSI
Seal Nitrile
Temperature Range -20 - +210°F
