MicroFit MFHHP40575 Replaces the Stauff SE-090-H-10-V/4

SE-090-H-10-V/4
SE-090-H-10-V/4
Representative product image Product image feedback

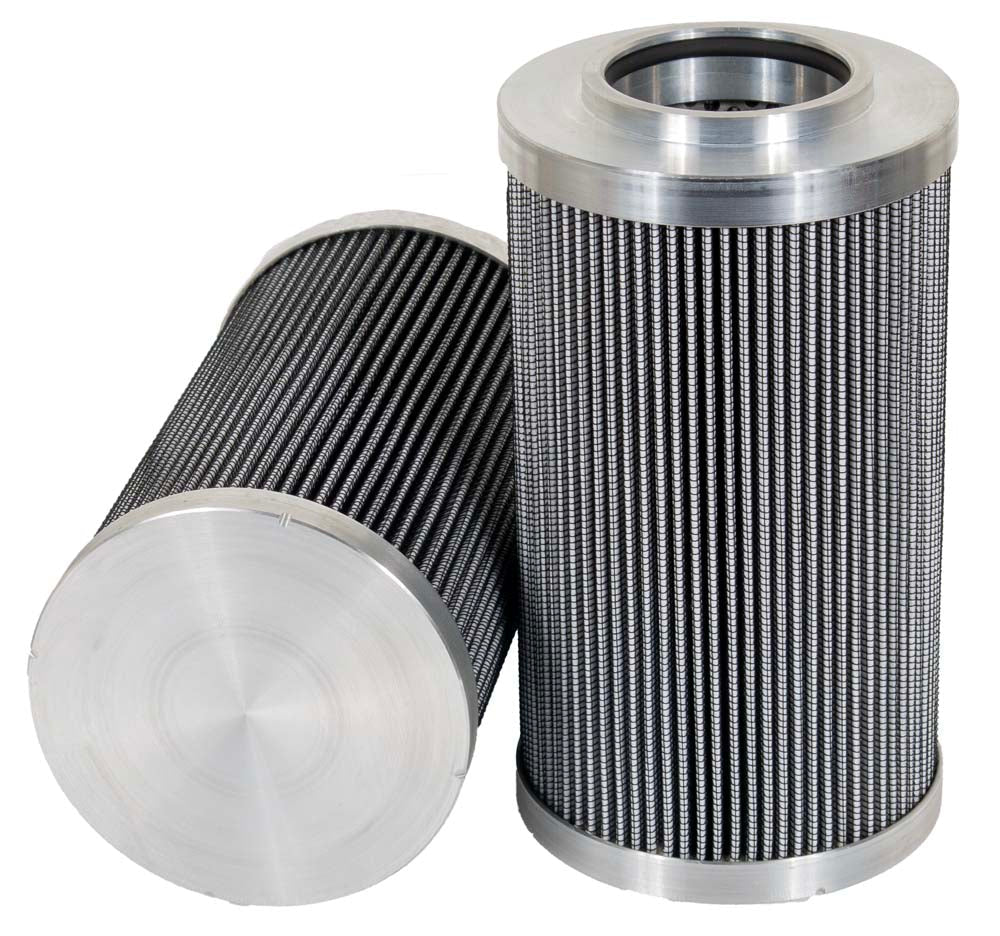

MicroFit® UltraGen III MFHHP40575 Pressure Filter | Replaces the Stauff SE-090-H-10-V/4

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40575 is the MICROFIT® approved replacement to the Stauff SE-090-H-10-V/4. Engineered and manufactured in Great Britain the MFHHP40575

Price Match
$184.00
5.54 lbs
0.047 ft³
66 pcs
United Kingdom
8421.99.90
2.54 lbs
0.046 ft³
66 pcs
Italy
8421.99.90
3.04 lbs
0.107 ft³
66 pcs
United States
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40575 is the MICROFIT® approved replacement to the Stauff SE-090-H-10-V/4. Engineered and manufactured in Great Britain the MFHHP40575

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3 9/16"
Inner Diameter 1 7/8"
Length 6 3/8"
Δ Collapse Pressure 3045.8 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Stauff Brand Logo

Same Fit-Form & Function

As the Genuine Stauff SE-090-H-10-V/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 3.56 in
Inner Diameter 1.89 in
Length 6.38 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Viton
Temperature Range -10 - +250°F
