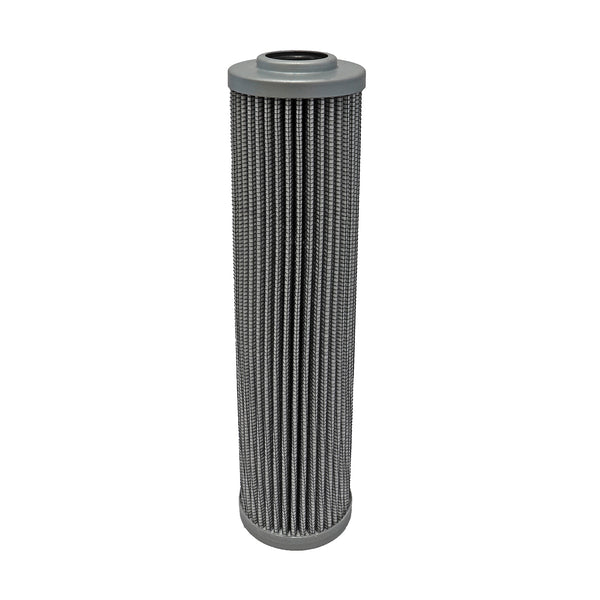

Stauff SD-015-E-20-B/4 Replaces the Stauff SD015E20B4
Stauff SD-015-E-20-B/4 Pressure Filter
SD-015-E-20-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 45,5 Inner Diameter (mm): 20,5 Length (mm): 197 Sealing: NBR, β ratio >200
Regular price
$96.00
Unit price
per
Germany
8421.99.90
0.49 lbs
0.023 ft³
France
8421.99.90
0.78 lbs
0.015 ft³
United Kingdom
8421.99.90
0.35 lbs
0.015 ft³
Italy
8421.99.90
Description
Replacement Filter Element for Pressure Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 45,5 Inner Diameter (mm): 20,5 Length (mm): 197 Sealing: NBR, β ratio >200Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 1 13/16" |
| Inner Diameter | 13/16" |
| Length | 7 13/16" |
| Δ Collapse Pressure | 145.0 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
