Summary

Stauff SD-010-B-60-B Replacement Pressure Filter

Stauff SD-010-B-60-B
Stauff SD-010-B-60-B

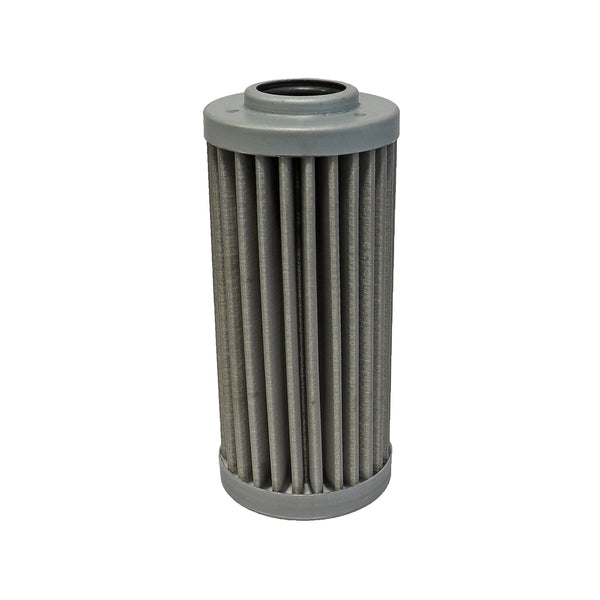

Representative product image Product image feedback

Stauff SD-010-B-60-B Pressure Filter

Brand: Stauff
Description

Replacement Filter Element for Pressure Filters Micron Rating: 60 µm Material: Stainless Mesh Outer Diameter (mm): 45,5 Inner Diameter (mm): 20,5 Length (mm): 103 Sealing: NBR, β ratio >2

Price Match
$75.00
Germany
8421.99.90
0.26 lbs
0.017 ft³
France
8421.99.90
0.24 lbs
0.008 ft³
Italy
8421.99.90
0.24 lbs
United Kingdom
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Pressure Filters Micron Rating: 60 µm Material: Stainless Mesh Outer Diameter (mm): 45,5 Inner Diameter (mm): 20,5 Length (mm): 103 Sealing: NBR, β ratio >2

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 1 13/16"
Inner Diameter 13/16"
Length 4 1/8"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff SD-010-B-60-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Pressure Filter
Outer Diameter 1.79 in
Inner Diameter 0.81 in
Length 4.09 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
