Summary

MicroFit MFHSU70178 Replaces the Schroeder SBFUE31920Z5V

SBFUE31920Z5V
SBFUE31920Z5V
Representative product image Product image feedback

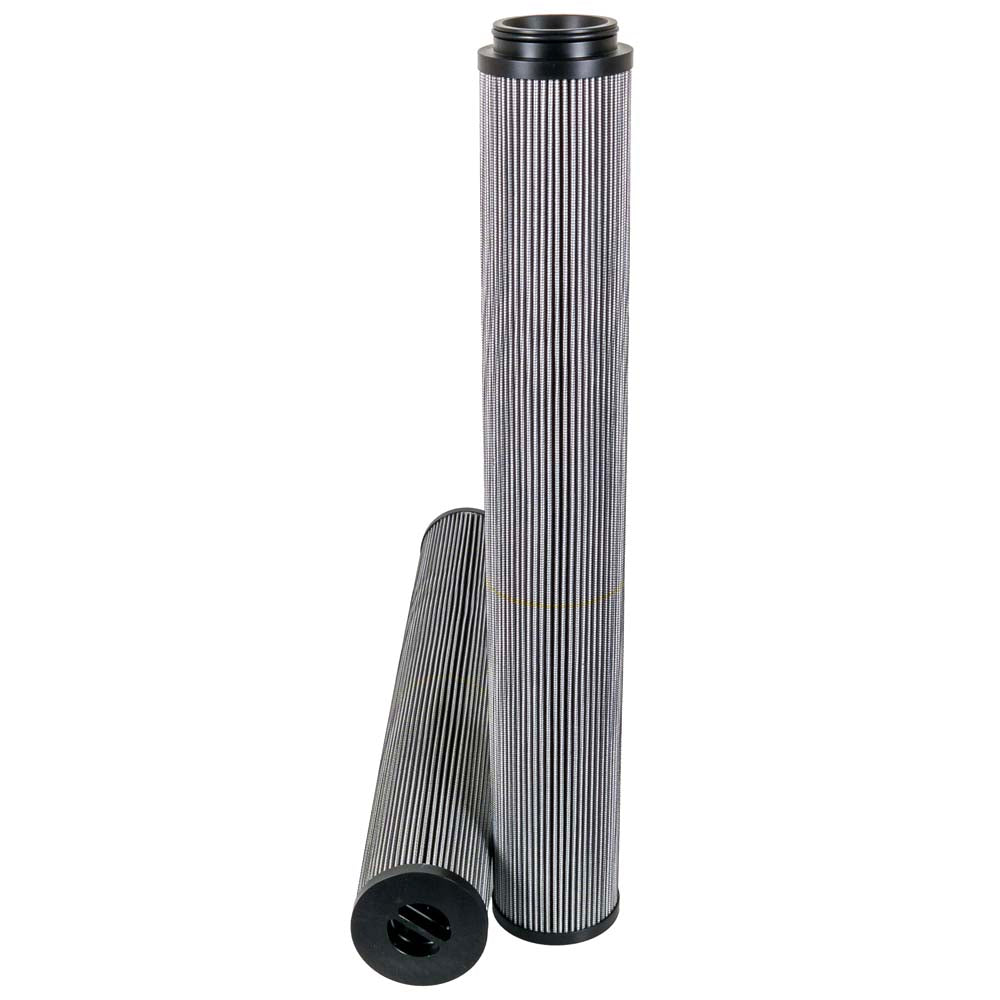

MicroFit® UltraGen III MFHSU70178 Suction Filter | Replaces the Schroeder SBFUE31920Z5V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70178 is the MICROFIT® approved replacement to the Schroeder SBFUE31920Z5V. Engineered and manufactured in Great Britain the MFHSU70178

Price Match
$217.00
3.6 lbs
0.118 ft³
63 pcs
United Kingdom
8421.99.90
2.31 lbs
0.265 ft³
63 pcs
United States
8421.29.80.90
1.63 lbs
0.118 ft³
63 pcs
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70178 is the MICROFIT® approved replacement to the Schroeder SBFUE31920Z5V. Engineered and manufactured in Great Britain the MFHSU70178

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 3 1/8"
Inner Diameter 2 1/2"
Length 21 1/8"
Seal MaterialViton
Temperature Range -10 - +250°F
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBFUE31920Z5V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Suction Filter
Outer Diameter 3.11 in
Inner Diameter 2.5 in
Length 21.12 in
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -10 - +250°F
