MICROFIT MFHSU70234 Replaces the Schroeder SBFUE21913Z10V

MICROFIT MFHSU70234
Representative product image Product image feedback

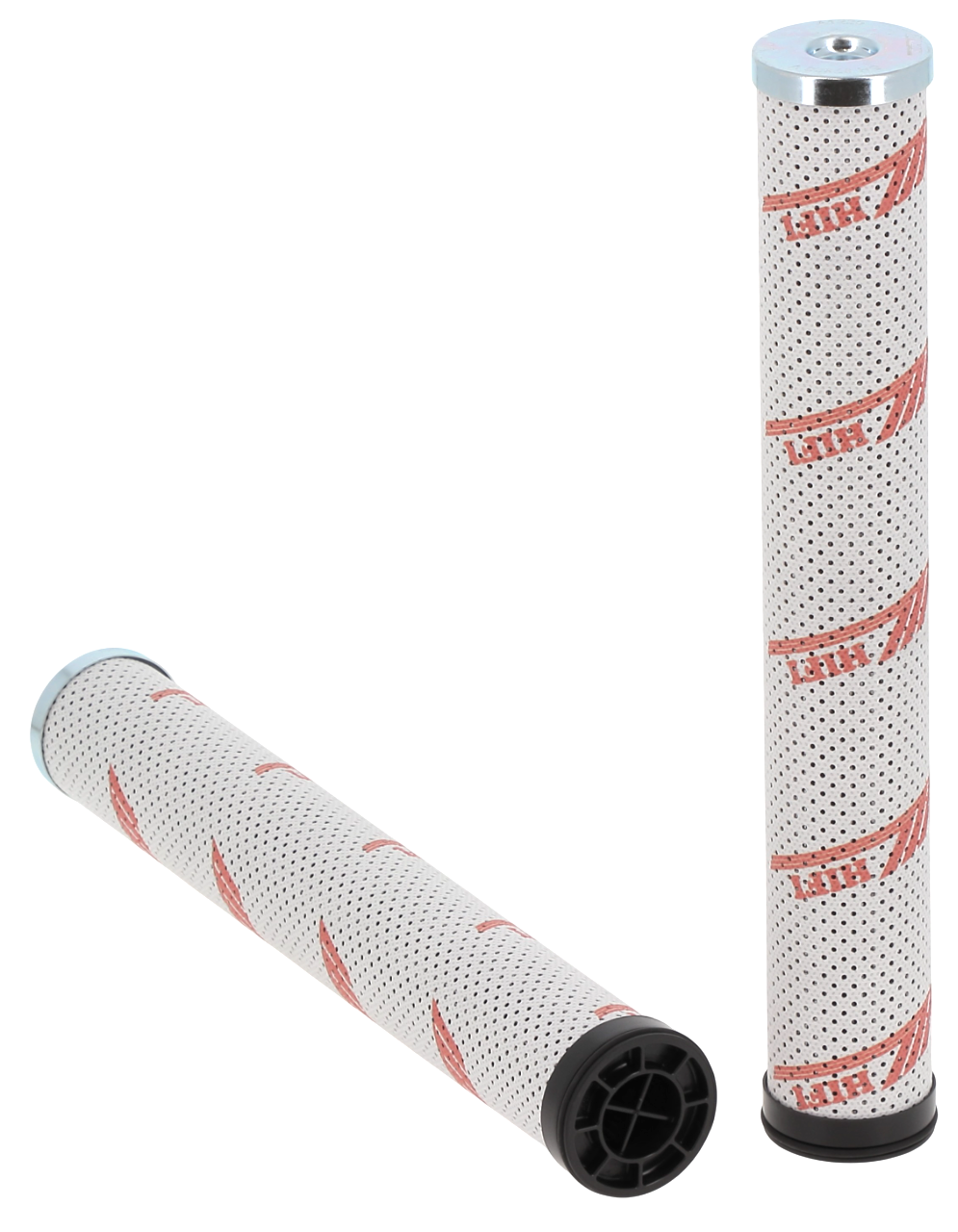

MICROFIT® UltraGen III MFHSU70234 Replaces the Schroeder SBFUE21913Z10V

MFHSU70234
MICROFIT
Schroeder SBFUE21913Z10V
Description

The MICROFIT® UltraGen III MFHSU70234 is the MICROFIT® approved replacement to the Schroeder SBFUE21913Z10V. Engineered and manufactured in Great Britain the MFHSU70234

Brand: MICROFIT
Price Matched
$133.00
1.7 lbs
8421.99.90
United Kingdom
0.77 lbs
8421.99.90
Italy
0.49 lbs
8421.99.90
France
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70234 is the MICROFIT® approved replacement to the Schroeder SBFUE21913Z10V. Engineered and manufactured in Great Britain the MFHSU70234

Specification

StyleSuction Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 2.13 in
Inner Diameter 1.67 in
Length 14.45 in
MediaGlass Fiber (Anti-Static)
Flow DirectionIN-OUT
Seal MaterialViton
Temperature Range -10 - +250°F

Approved Product

Find out more
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBFUE21913Z10V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Suction Filter
Outer Diameter 2.13 in
Inner Diameter 1.67 in
Length 14.45 in
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -10 - +250°F
