MICROFIT MFHHP41011 Replaces the Schroeder SBF980113S7V

MICROFIT MFHHP41011
Representative product image Product image feedback

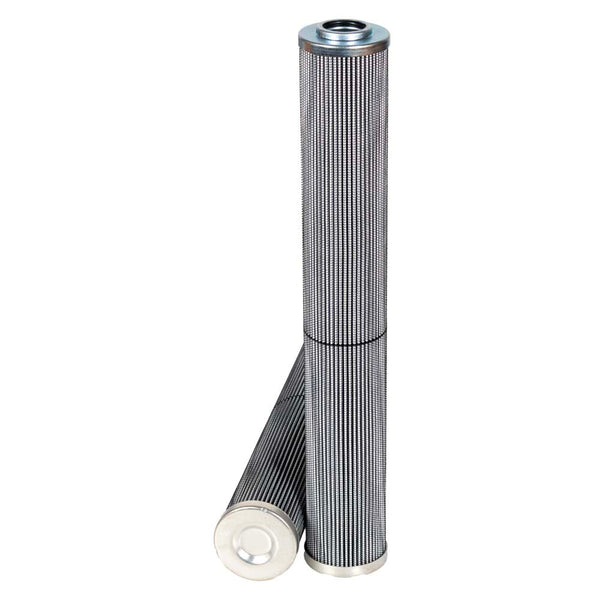

MICROFIT® UltraGen III MFHHP41011 Replaces the Schroeder SBF980113S7V

MFHHP41011
MICROFIT
Schroeder SBF980113S7V
Description

The MICROFIT® UltraGen III MFHHP41011 is the MICROFIT® approved replacement to the Schroeder SBF980113S7V. Engineered and manufactured in Great Britain the MFHHP41011

Brand: MICROFIT
Price Matched
$240.00
4.12 lbs
8421.99.90
United Kingdom
1.87 lbs
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP41011 is the MICROFIT® approved replacement to the Schroeder SBF980113S7V. Engineered and manufactured in Great Britain the MFHHP41011

Specification

StylePressure Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 2.01 in
Inner Diameter 0.94 in
Length 12.99 in
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 3046 PSI
Seal MaterialViton
Temperature Range -10 - +250°F

Approved Product

Find out more
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF980113S7V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 2.01 in
Inner Diameter 0.94 in
Length 12.99 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Viton
Temperature Range -10 - +250°F
