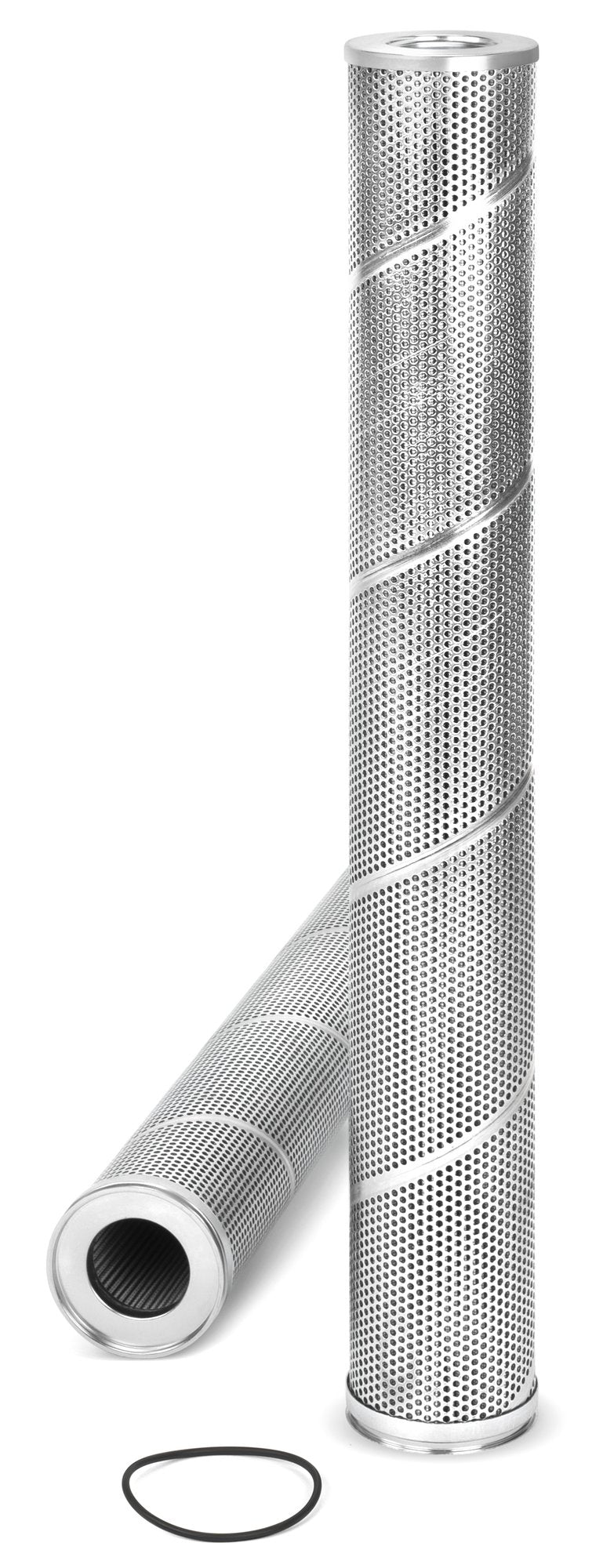

Stauff RP-115-E-10-B/4 Replacement Return Filter

Stauff RP-115-E-10-B/4
Representative product image Product image feedback

Stauff RP-115-E-10-B/4 Replacement Return Filter

RP-115-E-10-B/4
Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 86 Inner Diameter (mm): 49,5 Length (mm): 655 Sealing: NBR, β ratio >200

Brand: Stauff
Price Matched
$291.00
4.25 lbs
8421.99.90
Germany
3.92 lbs
8421.99.90
France
3.97 lbs
8421.99.90
Italy
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 86 Inner Diameter (mm): 49,5 Length (mm): 655 Sealing: NBR, β ratio >200

Specification

StyleReturn Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 3.39 in
Inner Diameter 1.95 in
Length 25.67 in
MediaGlass Fiber
Flow DirectionIN-OUT
Seal MaterialNitrile
Temperature Range -20 - +210°F

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff RP-115-E-10-B/4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 3.39 in
Inner Diameter 1.95 in
Length 25.67 in
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -20 - +210°F
