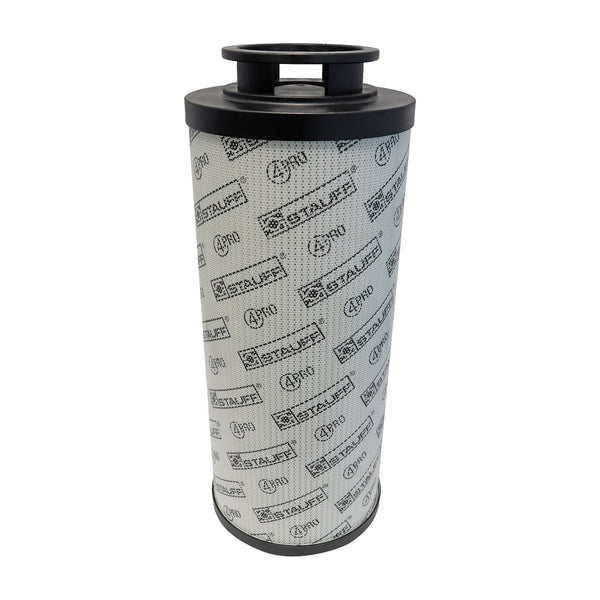

Stauff RE-160-G-10-B/4 Replaces the Stauff RE160G10B4
Stauff RE-160-G-10-B/4 Return Filter
RE-160-G-10-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 114 Inner Diameter (mm): 68,2 Length (mm): 334 Sealing: NBR, β ratio >200
Regular price
$241.00
Unit price
per
Germany
8421.99.90
3.79 lbs
0.234 ft³
France
8421.99.90
4.63 lbs
0.153 ft³
Italy
8421.99.90
4.63 lbs
United Kingdom
8421.99.90
Germany
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 114 Inner Diameter (mm): 68,2 Length (mm): 334 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 4 1/2" |
| Inner Diameter | 2 11/16" |
| Length | 13 1/8" |
| Bypass Pressure | 44 psi |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff RE-160-G-10-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
