Stauff RE-090-G-20-B/4 Replaces the Stauff RE090G20B4

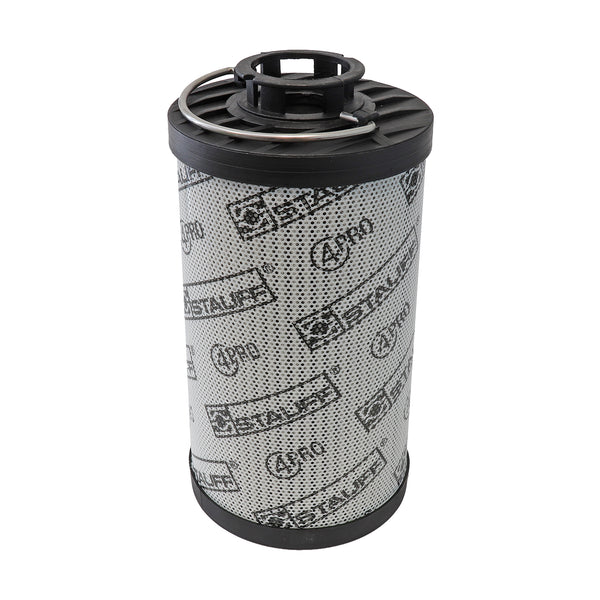

Stauff RE-090-G-20-B/4 Return Filter
RE-090-G-20-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 48,5 Length (mm): 195 Sealing: NBR, β ratio >200
Regular price
$143.00
Unit price
per
600 pcs
Germany
8421.99.90
1.85 lbs
0.06 ft³
600 pcs
Italy
8421.99.90
1.76 lbs
0.078 ft³
600 pcs
Italy
8421.29.80.90
1.85 lbs
600 pcs
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 95 Inner Diameter (mm): 48,5 Length (mm): 195 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 3 3/4" |
| Inner Diameter | 1 7/8" |
| Length | 7 5/8" |
| Bypass Pressure | 44 psi |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff RE-090-G-20-B/4
Inspected to ISO 9001:2015
