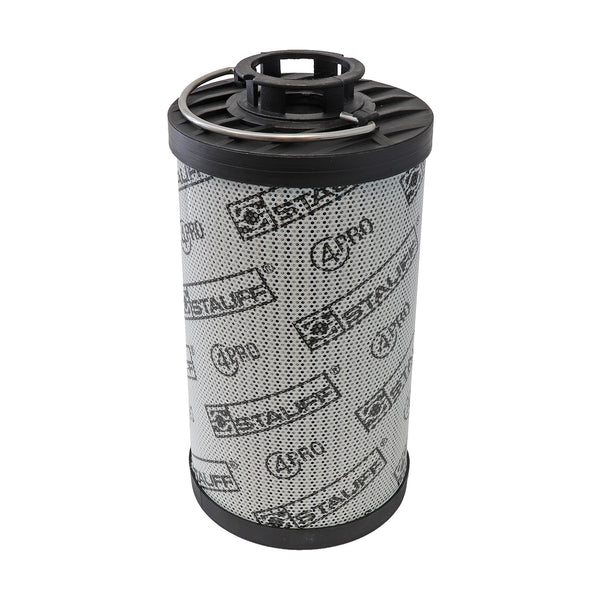

Stauff RE-045-G-10-B/4 Replaces the Stauff RE045G10B4
Stauff RE-045-G-10-B/4 Return Filter
RE-045-G-10-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 144 Sealing: NBR, β ratio >200
Regular price
$98.00
Unit price
per
Germany
8421.99.90
0.71 lbs
0.043 ft³
France
8421.99.90
0.84 lbs
0.028 ft³
Italy
8421.99.90
0.4 lbs
0.018 ft³
United Kingdom
8421.99.90
Germany
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 74 Inner Diameter (mm): 34,2 Length (mm): 144 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 2 7/8" |
| Inner Diameter | 1 3/8" |
| Length | 5 11/16" |
| Bypass Pressure | 44 psi |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff RE-045-G-10-B/4
Inspected to ISO 9001:2015
