Stauff RE-045-A-20-B/3 Replaces the Stauff RE045A20B4
Stauff RE-045-A-20-B/3 Return Filter | Replaces the Stauff RE045A20B4
RE-045-A-20-B/3
Stauff
Stauff RE045A20B4
Stauff
Stauff RE045A20B4
Brand:
Stauff
Description

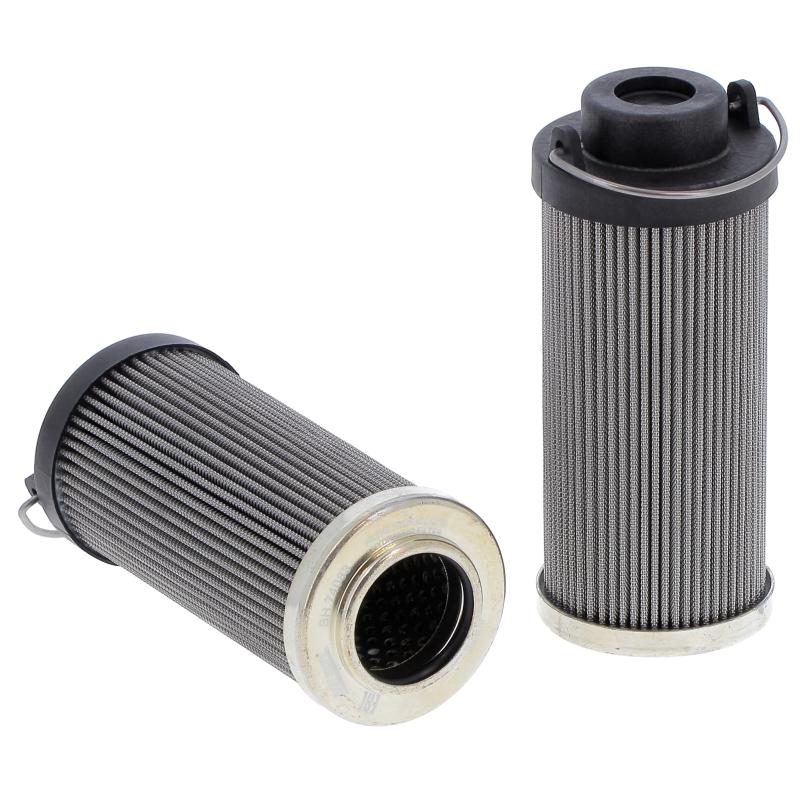

Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Stainless Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 144 Sealing: NBR, β ratio >2
Regular price
$298.00
Unit price
per
Germany
8421.99.90
0.77 lbs
0.018 ft³
Italy
8421.99.90
0.75 lbs
0.033 ft³
France
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 20 µm Material: Stainless Fibre Outer Diameter (mm): 60 Inner Diameter (mm): 34,2 Length (mm): 144 Sealing: NBR, β ratio >2Specification
| Style | Return Filter |
| Media | Stainless Steel Fiber |
| Efficiency 1 | 25µ @ β200 |
| Efficiency 2 | 27µ @ β1000 |
| Outer Diameter | 2 3/8" |
| Inner Diameter | 1 3/8" |
| Length | 5 11/16" |
| Bypass Pressure | 44 psi |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff RE-045-A-20-B/3
Inspected to ISO 9001:2015
