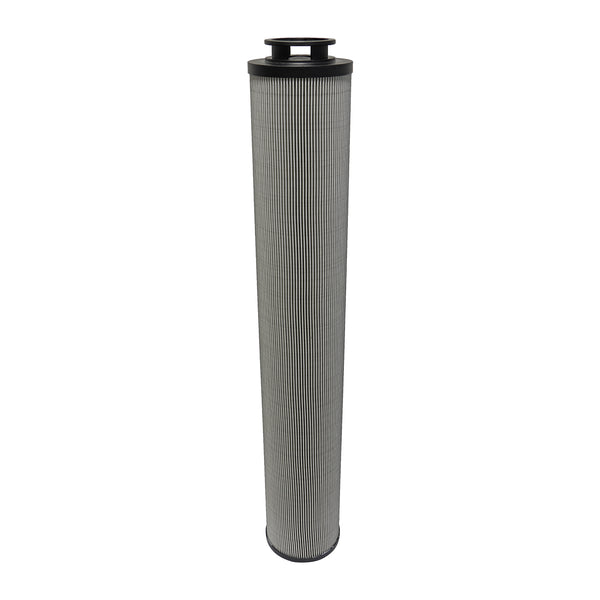

Stauff RE-600-G-10-B/5 Replacement Return Filter
Stauff RE-600-G-10-B/5 Return Filter
RE-600-G-10-B/5
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 922 Sealing: NBR, β ratio >200
Regular price
$716.00
Unit price
per
36 pcs
Germany
8421.99.90
13.45 lbs
1.146 ft³
36 pcs
United States
8421.29.80.90
20.24 lbs
0.675 ft³
36 pcs
Italy
8421.99.90
12.92 lbs
0.913 ft³
36 pcs
France
8421.99.90
20.24 lbs
36 pcs
United Kingdom
8421.99.90
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 143 Inner Diameter (mm): 96,1 Length (mm): 922 Sealing: NBR, β ratio >200Specification
| Style | Return Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 5 5/8" |
| Inner Diameter | 3 13/16" |
| Length | 36 1/4" |
| Bypass Pressure | 44 psi |
| Δ Collapse Pressure | 290.1 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
