Stauff RD-055-B-40-B Replacement Return Filter

Stauff RD-055-B-40-B
Stauff RD-055-B-40-B
Representative product image Product image feedback

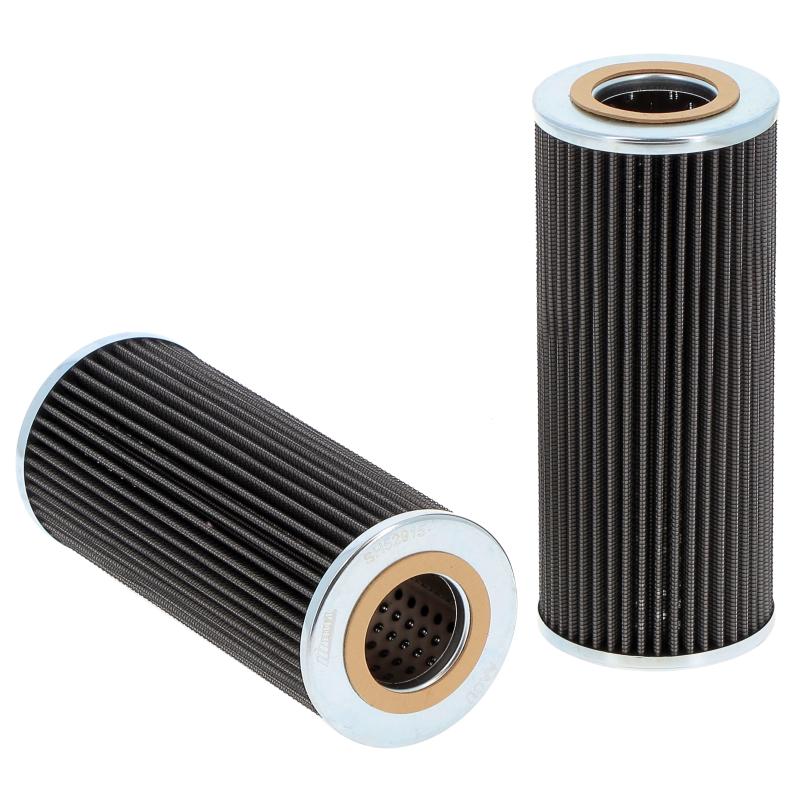

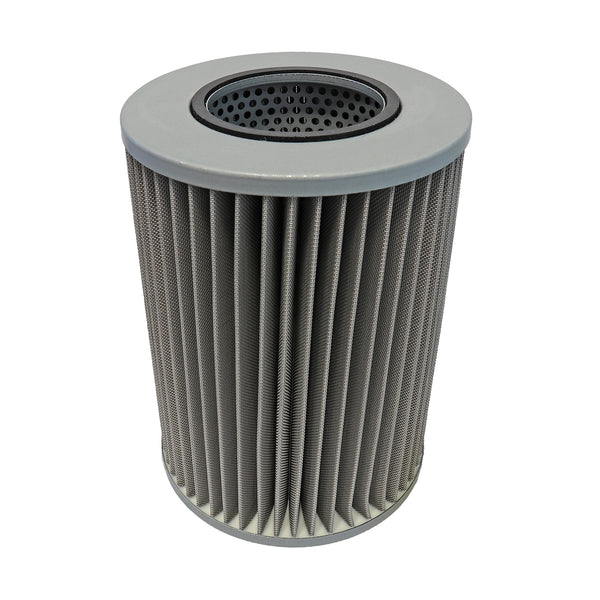

Stauff RD-055-B-40-B Return Filter

Brand: Stauff
Description

Replacement Filter Element for Return-Line Filters Micron Rating: 40 µm Material: Stainless Mesh Outer Diameter (mm): 83 Inner Diameter (mm): 40,2 Length (mm): 197 Sealing: NBR, β ratio >2

Price Match
$383.00
Germany
8421.99.90
1.32 lbs
0.083 ft³
France
8421.99.90
1.34 lbs
0.048 ft³
Italy
8421.99.90
1.34 lbs
United Kingdom
8421.99.90
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 40 µm Material: Stainless Mesh Outer Diameter (mm): 83 Inner Diameter (mm): 40,2 Length (mm): 197 Sealing: NBR, β ratio >2

Specification

StyleReturn Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 3 1/4"
Inner Diameter 1 9/16"
Length 7 3/4"
Δ Collapse Pressure 116.0 psi
Seal MaterialGuarnital
Temperature Range -20 - +210°F
Stauff Brand Logo

Stauff Product

Genuine Stauff RD-055-B-40-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Return Filter
Outer Diameter 3.27 in
Inner Diameter 1.59 in
Length 7.76 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 116 PSI
Seal Guarnital
Temperature Range -20 - +210°F
