Specification

StylePressure Filter
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 1.85 in
Inner Diameter 0.88 in
Length 3.31 in
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 290 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

FilterFinder Approved Product

We Guarantee The FilterFinder FF200238B Is

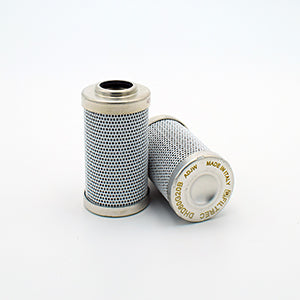

  • The Same Fit, Form & Function as the Original Rexroth R928017107.
  • Fully Inspected in Accordance with ISO 9001:2015.

What This Means For You

  • Simple No Quibble 45 Day Returns.
  • 1 Year Manufacturer Warranty.
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 1.85 in
Inner Diameter 0.88 in
Length 3.31 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 290 PSI
Seal Nitrile
Temperature Range -20 - +210°F
