Stauff NR-630-E-10-B/4 Replaces the Stauff NR630E10B
Stauff NR-630-E-10-B/4 Replaces the Stauff NR630E10B
NR-630-E-10-B/4
Stauff
Stauff NR630E10B
Stauff
Stauff NR630E10B
Description

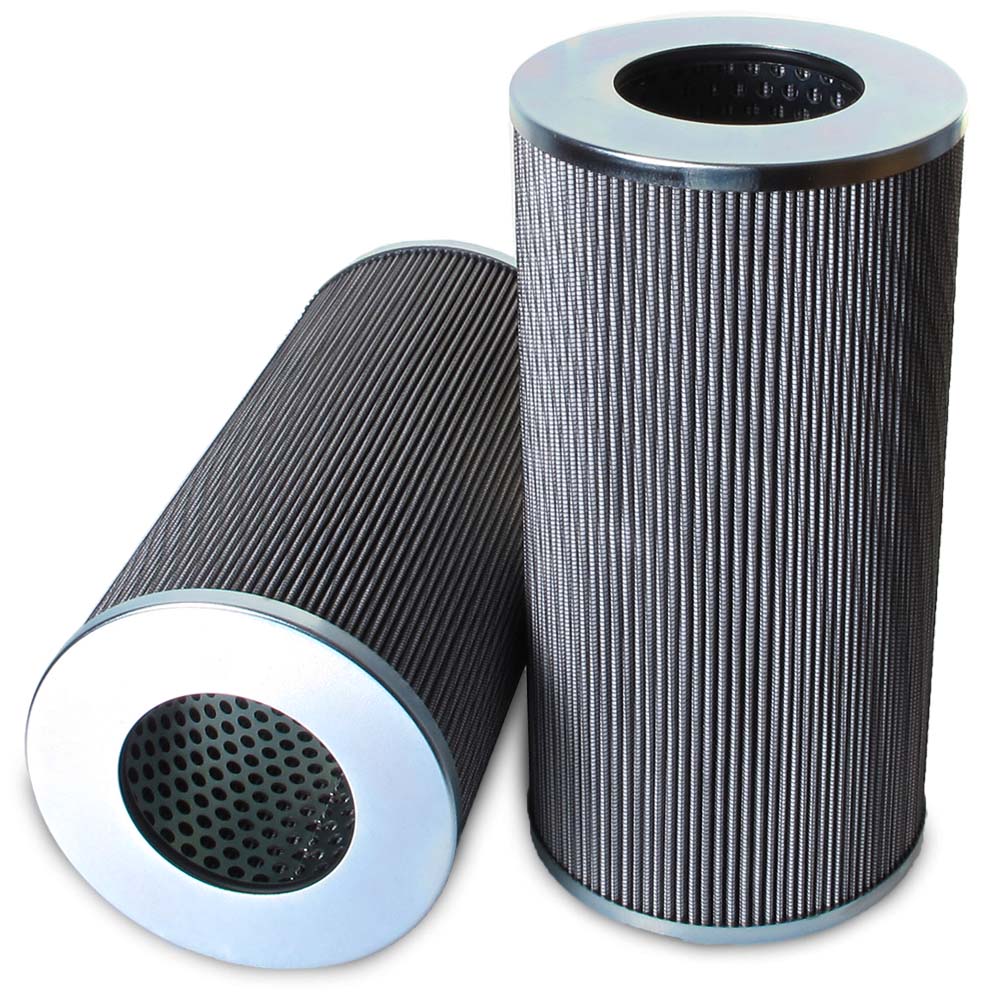

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 139,5 Inner Diameter (mm): 70,3 Length (mm): 399 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$338.00
Unit price
per
5.06 lbs
8421.99.90
Germany
4.41 lbs
8421.29.80.90
United States
4.59 lbs
8421.99.90
Italy
4.81 lbs
8421.99.90
France
Description
Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 139,5 Inner Diameter (mm): 70,3 Length (mm): 399 Sealing: NBR, β ratio >200Specification
| Style | DIN Return Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 5.08 in |
| Inner Diameter | 2.78 in |
| Length | 15.75 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 145 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
