Stauff NR-100-K-10-B Replaces the Stauff NR100K10B

Stauff NR100K10B
Representative product image Product image feedback

Stauff NR-100-K-10-B Replaces the Stauff NR100K10B

NR-100-K-10-B
Stauff
Stauff NR100K10B
Description

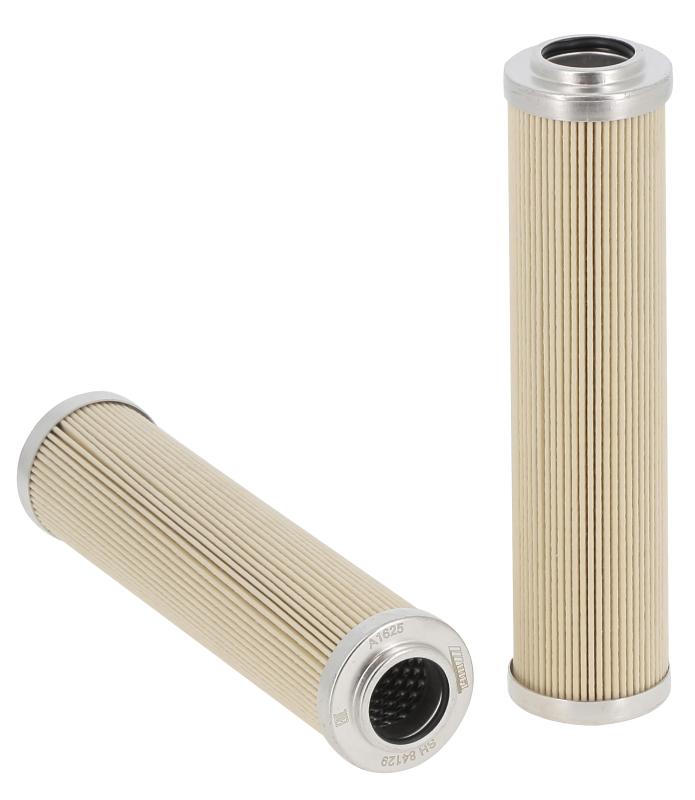

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 249 Sealing: NBR, β ratio >2

Brand: Stauff
Price Matched
$114.00
0.77 lbs
8421.99.90
Germany
0.71 lbs
8421.99.90
France
0.66 lbs
8421.99.90
Italy
Shipping Terms

Description

Replacement Filter Element for Return-Line Filters Micron Rating: 10 µm Material: Filter Paper Outer Diameter (mm): 58 Inner Diameter (mm): 32,2 Length (mm): 249 Sealing: NBR, β ratio >2

Specification

StyleDIN Return Filter
Efficiency 110µ @ β2
Outer Diameter 2.28 in
Inner Diameter 1.27 in
Length 9.8 in
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 145 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

Genuine Product

Find out more
Stauff Brand Logo

Stauff Product

Genuine Stauff NR-100-K-10-B

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style DIN Return Filter
Outer Diameter 2.28 in
Inner Diameter 1.27 in
Length 9.8 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
