Stauff NL-630-F-10-B/4 Replaces the Stauff NL630F10B4
Stauff NL-630-F-10-B/4 DIN Pressure Filter
NL-630-F-10-B/4
Stauff
Stauff
Brand:
Stauff
Description

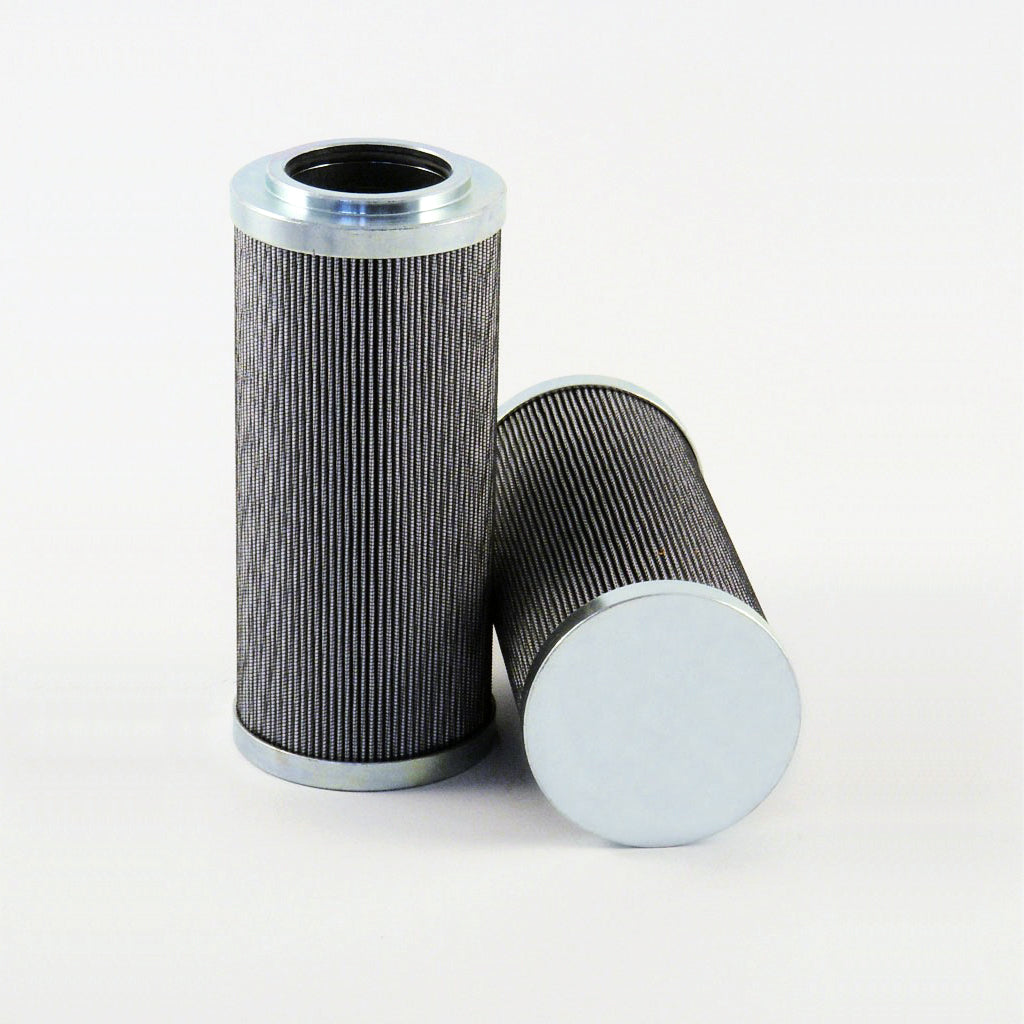

Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 99,7 Inner Diameter (mm): 60,3 Length (mm): 399 Sealing: NBR, β ratio >200
Regular price
$837.00
Unit price
per
Germany
8421.99.90
19.64 lbs
0.141 ft³
United Kingdom
8421.99.90
6.13 lbs
0.244 ft³
France
8421.99.90
8.93 lbs
0.141 ft³
Italy
8421.99.90
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 99,7 Inner Diameter (mm): 60,3 Length (mm): 399 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 3 15/16" |
| Inner Diameter | 2 3/8" |
| Length | 15 3/4" |
| Δ Collapse Pressure | 3045.8 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff NL-630-F-10-B/4
Inspected to ISO 9001:2015
See Our Certification
Free 45-Day Returns
Return Policy
