Stauff NL-250-E-06-B/4 Replaces the Stauff NL250E06B4
Stauff NL-250-E-06-B/4 Replaces the Stauff NL250E06B4
NL-250-E-06-B/4
Stauff
Stauff NL250E06B4
Stauff
Stauff NL250E06B4
Description

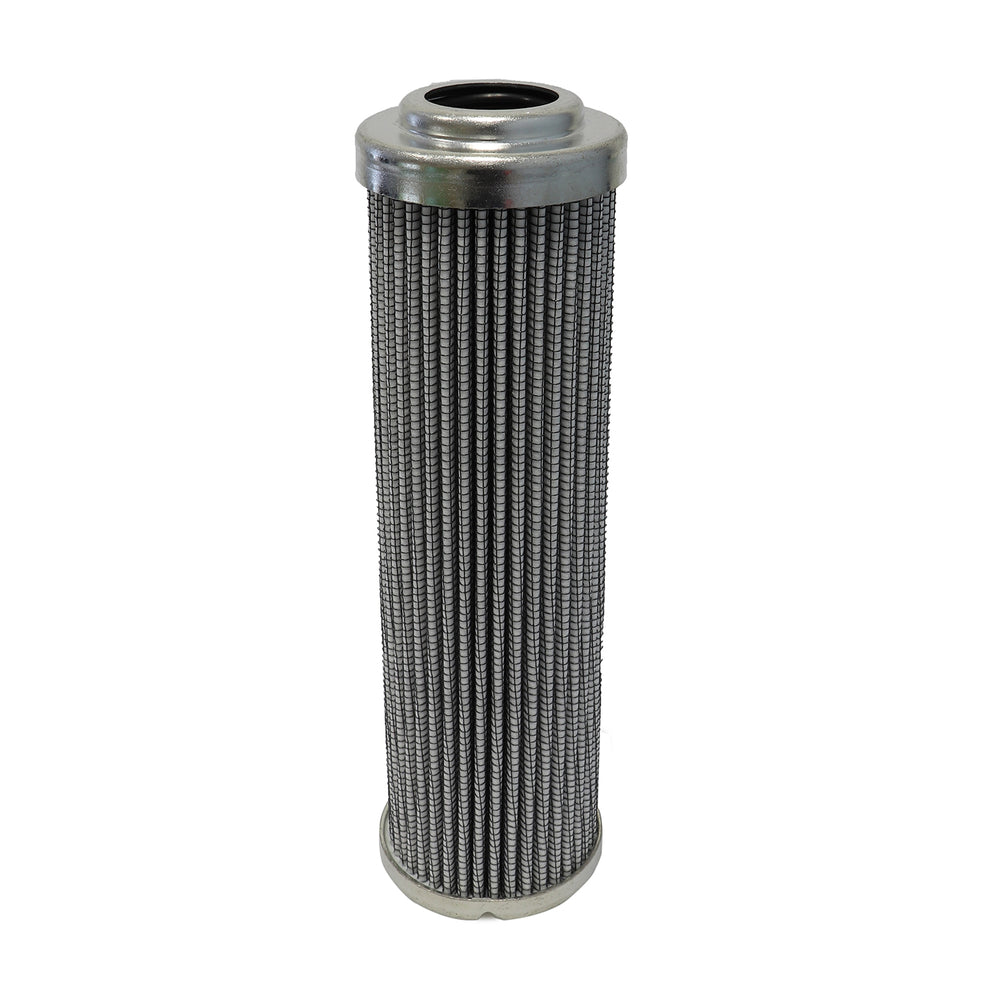

Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 249 Sealing: NBR, β ratio >200
Brand:
Stauff
Sort by:
$341.00
Shipped Thursday, 12 June
| UNITS | PER UNIT |
|---|---|
| 2 - 4 | $334.18 |
| 5 - 9 | $327.36 |
| 10 - + | $320.54 |
1.69 lbs
8421.99.90
Germany
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 249 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 3.07 in |
| Inner Diameter | 1.59 in |
| Length | 9.76 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 305 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
