Stauff NL-100-E-10-B/4 Replaces the Stauff NL100E10B4
Stauff NL-100-E-10-B/4 Replaces the Stauff NL100E10B4
NL-100-E-10-B/4
Stauff
Stauff NL100E10B4
Stauff
Stauff NL100E10B4

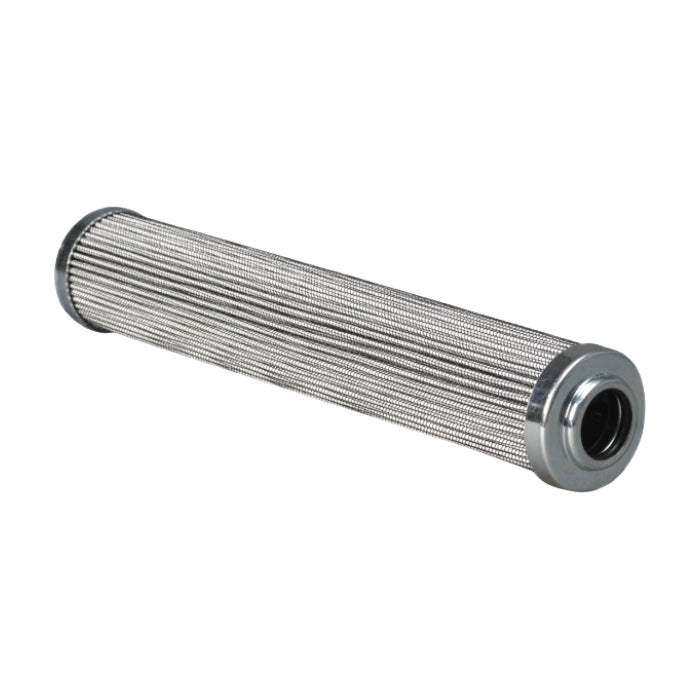

Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 44,5 Inner Diameter (mm): 22,2 Length (mm): 249 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$116.00
Unit price
per
0.75 lbs
8421.99.90
Germany
0.84 lbs
8421.29.80.90
Italy
0.82 lbs
8421.99.90
France
0.66 lbs
8421.99.90
Italy
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 44,5 Inner Diameter (mm): 22,2 Length (mm): 249 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 1.75 in |
| Inner Diameter | 0.88 in |
| Length | 9.76 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 305 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
