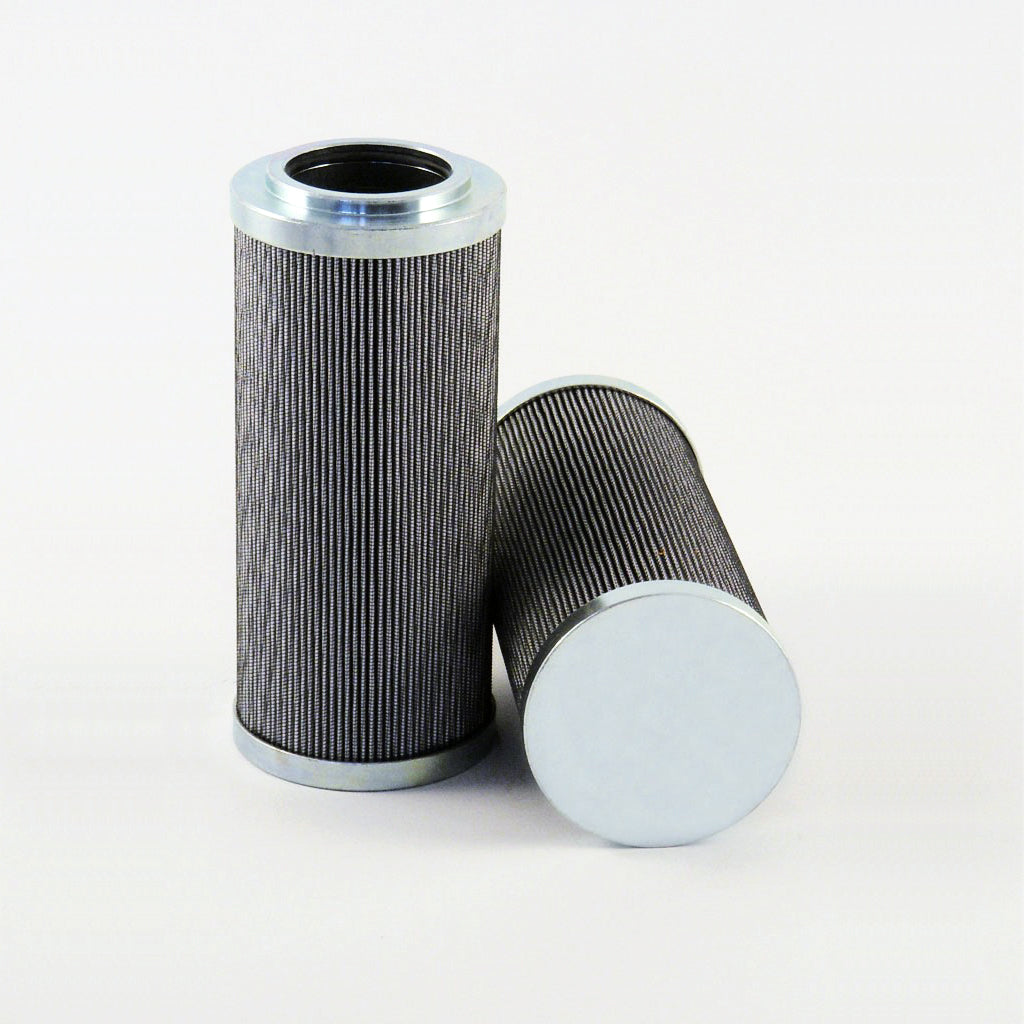

Stauff NL-630-F-10-B/4 Replacement DIN Pressure Filter
Stauff NL-630-F-10-B/4 Replacement DIN Pressure Filter
NL-630-F-10-B/4
Stauff
Stauff
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 99,7 Inner Diameter (mm): 60,3 Length (mm): 399 Sealing: NBR, β ratio >200
Brand:
Stauff
Regular price
$813.00
Unit price
per
7.42 lbs
8421.99.90
Germany
6.13 lbs
8421.99.90
France
8.91 lbs
8421.99.90
Italy
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 10 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 99,7 Inner Diameter (mm): 60,3 Length (mm): 399 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Efficiency 1 | 10µ @ β200 |
| Efficiency 2 | 12µ @ β1000 |
| Outer Diameter | 3.94 in |
| Inner Diameter | 2.37 in |
| Length | 15.75 in |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 3046 PSI |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
