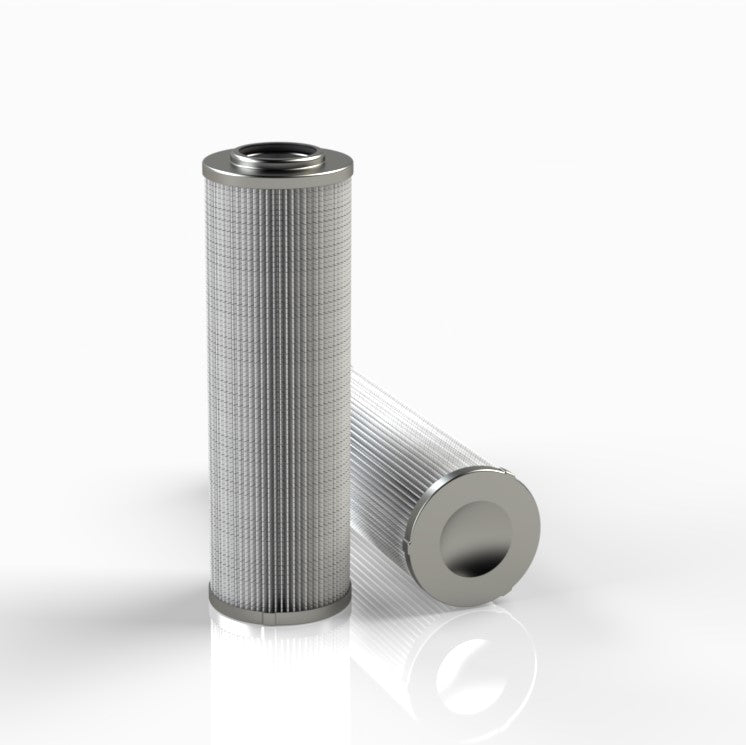

Stauff NL-250-E-06-B/4 Replacement DIN Pressure Filter
Stauff NL-250-E-06-B/4 DIN Pressure Filter
NL-250-E-06-B/4
Stauff
Stauff
Brand:
Stauff
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 249 Sealing: NBR, β ratio >200
Regular price
$344.00
Unit price
per
Germany
8421.99.90
3.69 lbs
0.053 ft³
United Kingdom
8421.99.90
1.68 lbs
0.053 ft³
Italy
8421.99.90
1.63 lbs
0.071 ft³
France
8421.99.90
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 249 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 3 1/16" |
| Inner Diameter | 1 5/8" |
| Length | 9 3/4" |
| Δ Collapse Pressure | 304.6 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
Stauff Product
Genuine Stauff NL-250-E-06-B/4
Inspected to ISO 9001:2015
