Stauff NL-160-E-06-B/4 Replacement DIN Pressure Filter
Stauff NL-160-E-06-B/4 DIN Pressure Filter
NL-160-E-06-B/4
Stauff
Stauff
Brand:
Stauff
Description

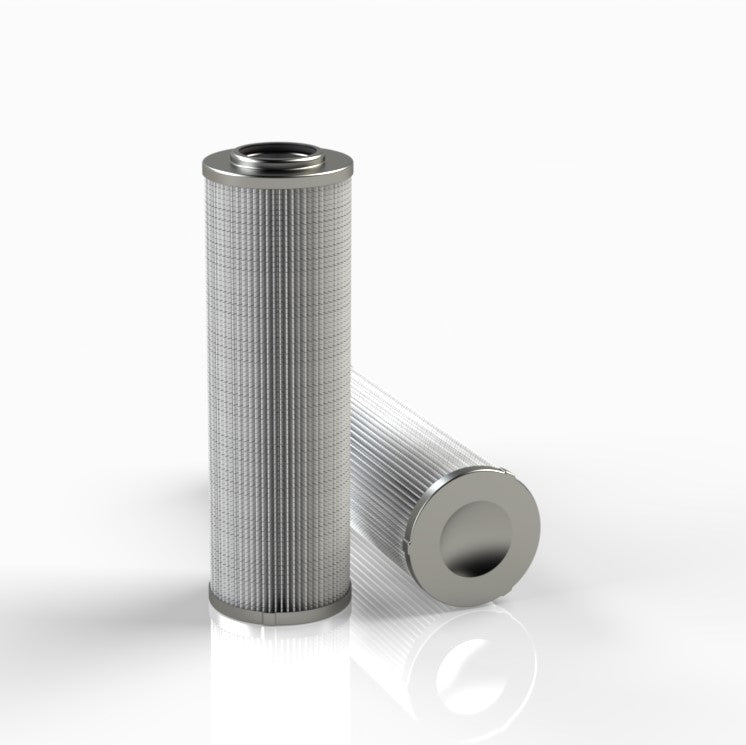

Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 159 Sealing: NBR, β ratio >200
Regular price
$252.00
Unit price
per
Germany
8421.99.90
2.43 lbs
0.034 ft³
United Kingdom
8421.99.90
1.1 lbs
0.034 ft³
Italy
8421.99.90
1.15 lbs
0.042 ft³
France
8421.99.90
Description
Replacement Filter Element for Medium-Pressure Filters Micron Rating: 6 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 79,8 Inner Diameter (mm): 40,2 Length (mm): 159 Sealing: NBR, β ratio >200Specification
| Style | DIN Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 3 1/16" |
| Inner Diameter | 1 5/8" |
| Length | 6 3/16" |
| Δ Collapse Pressure | 304.6 psi |
| Seal Material | Nitrile |
| Temperature Range | -20 - +210°F |
