MicroFit MFHSP80099 Replaces the Hydac N5DM002-V

N5DM002-V
N5DM002-V
Representative product image Product image feedback

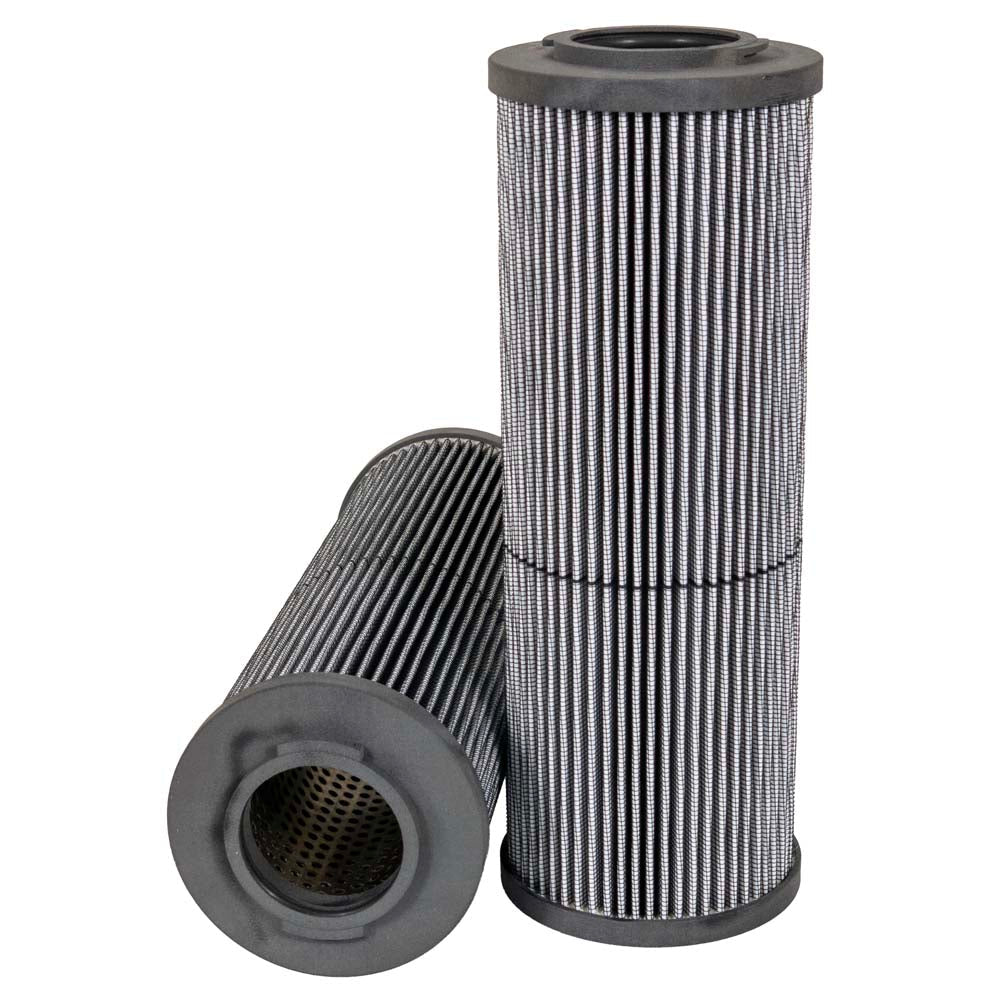

MicroFit® UltraGen III MFHSP80099 Special Filter | Replaces the Hydac N5DM002-V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSP80099 is the MICROFIT® approved replacement to the Hydac N5DM002-V. Engineered and manufactured in Great Britain the MFHSP80099

Price Match
$159.00
5.15 lbs
0.084 ft³
United Kingdom
8421.99.90
2.34 lbs
0.083 ft³
Italy
8421.99.90
2.16 lbs
0.113 ft³
France
8421.99.90
Germany
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSP80099 is the MICROFIT® approved replacement to the Hydac N5DM002-V. Engineered and manufactured in Great Britain the MFHSP80099

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 3 3/4"
Inner Diameter 1 7/8"
Length 10 7/16"
Δ Collapse Pressure 435.1 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac N5DM002-V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Special Filter
Outer Diameter 3.72 in
Inner Diameter 1.89 in
Length 10.43 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Viton
Temperature Range -10 - +250°F
