Schroeder N3 Replacement Special Filter

Schroeder N3

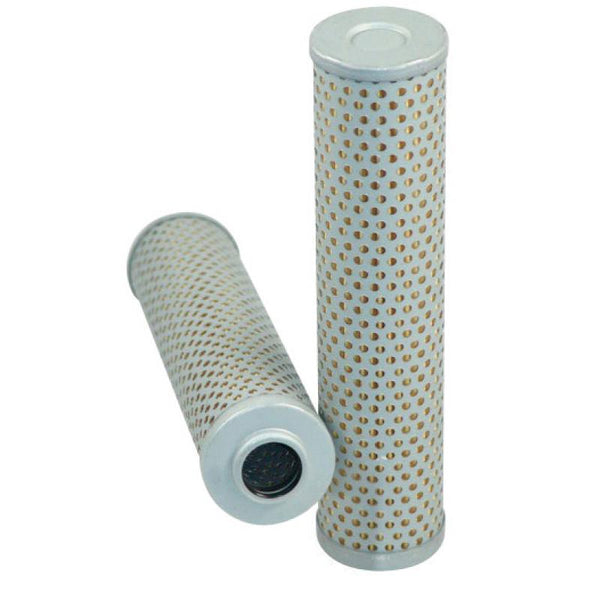

Representative product image Product image feedback

Schroeder N3 Replacement Special Filter

N3
Schroeder
Description

Original Schroeder N3 Replacement Hydraulic Filter

Brand: Schroeder
Price Matched
$49.00
8421.99.90
United States
0.26 lbs
8421.99.90
France
0.4 lbs
8421.29.80.90
United States
0.28 lbs
8421.99.90
Italy
Shipping Terms

Description

Original Schroeder N3 Replacement Hydraulic Filter

Specification

StyleSpecial Filter
Efficiency 13µ @ β2
Outer Diameter 1.77 in
Inner Diameter 0.77 in
Length 5.24 in
MediaCellulose
Flow DirectionOUT-IN
Δ Collapse Pressure 145 PSI
Seal MaterialNitrile
Temperature Range -20 - +210°F

Genuine Product

Find out more
Schroeder Brand Logo

Schroeder Product

Genuine Schroeder N3

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β2
Efficiency 2
Style Special Filter
Outer Diameter 1.77 in
Inner Diameter 0.77 in
Length 5.24 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
