Specification

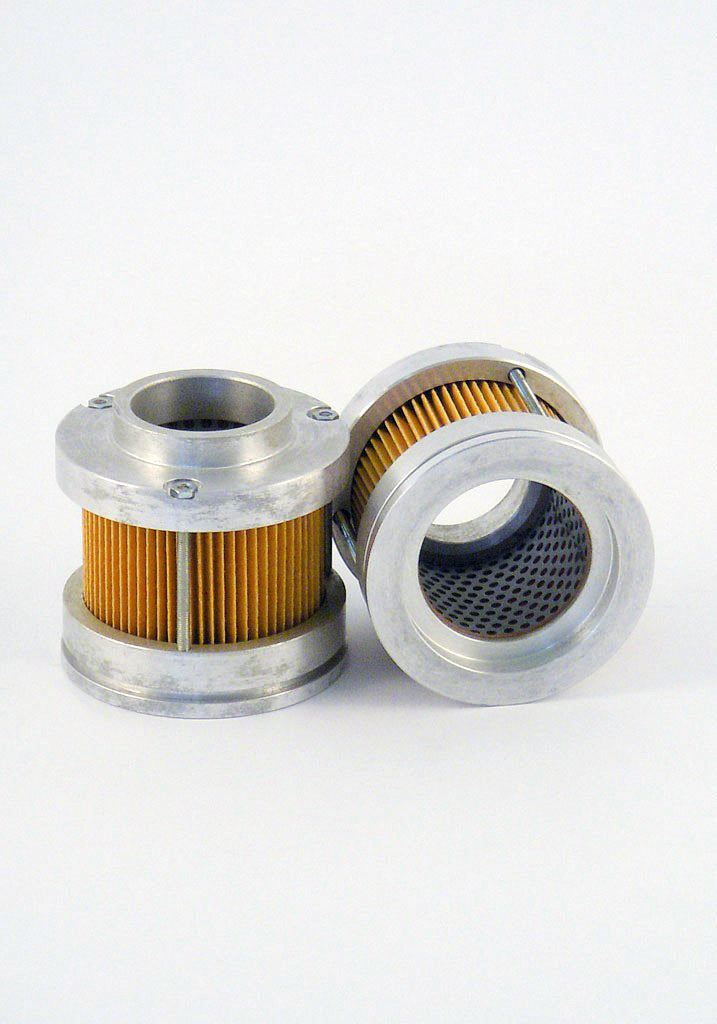

StyleSuction Filter
Efficiency 174µ
Outer Diameter 3.31 in
Inner Diameter 3.31 in
Length 3.23 in
MediaWire Mesh
Flow DirectionOUT-IN
Δ Collapse Pressure 44 PSI
Seal MaterialGuarnital
Temperature Range -20 - +210°F

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY19033

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
74µ
Efficiency 2
Style Suction Filter
Outer Diameter 3.31 in
Inner Diameter 3.31 in
Length 3.23 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 44 PSI
Seal Guarnital
Temperature Range -20 - +210°F
