MicroFit MFHLP31938 Replaces the SF Filter HY14546

MICROFIT MFHLP31938
MICROFIT MFHLP31938

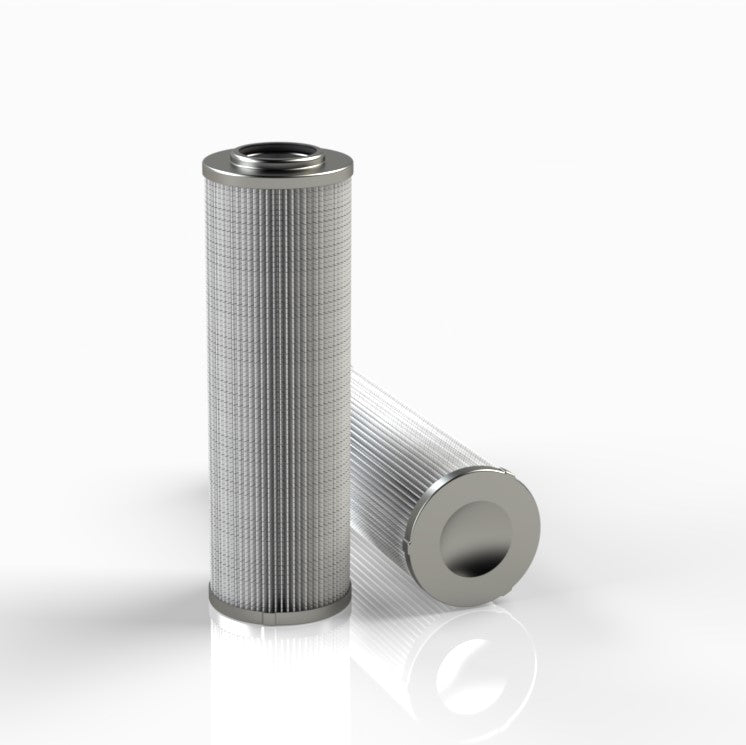

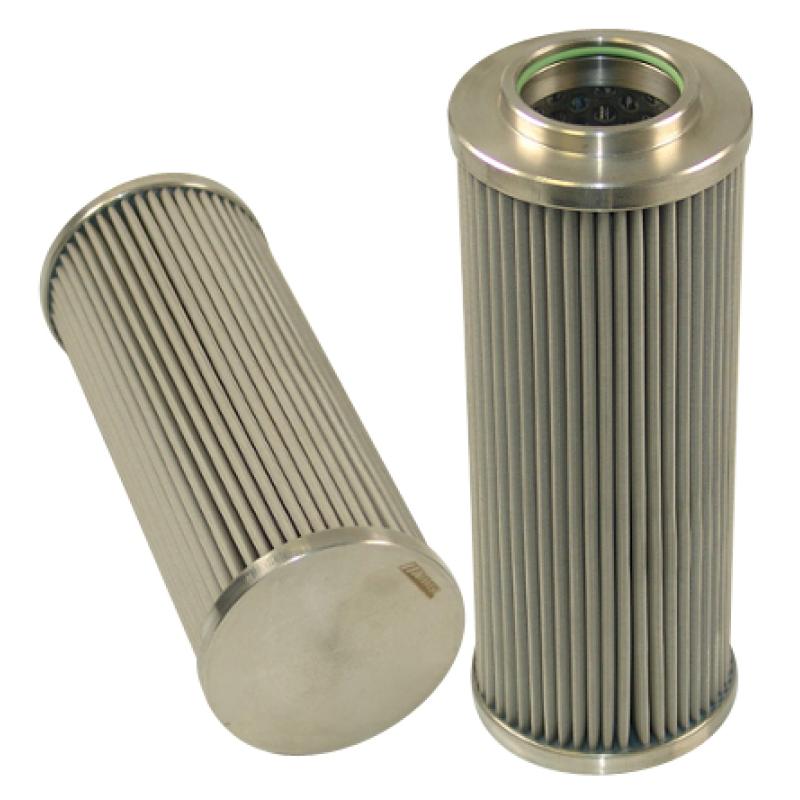

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP31938 DIN Pressure Filter | Replaces the SF Filter HY14546

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31938 is the MICROFIT® approved replacement to the SF Filter HY14546. Engineered and manufactured in Great Britain the MFHLP31938

Price Match
$139.00
3.69 lbs
0.053 ft³
United Kingdom
8421.99.90
1.68 lbs
0.053 ft³
Italy
8421.99.90
1.72 lbs
0.071 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31938 is the MICROFIT® approved replacement to the SF Filter HY14546. Engineered and manufactured in Great Britain the MFHLP31938

Specification

StyleDIN Pressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 3 1/16"
Inner Diameter 1 5/8"
Length 9 3/4"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY14546

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style DIN Pressure Filter
Outer Diameter 3.07 in
Inner Diameter 1.59 in
Length 9.76 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
