Mann Filter HD 1060 Replaces the SF Filter HY13400/1

HY13400/1
HY13400/1
HY13400/1 - image 2
HY13400/1 - image 3
OE Quality
Range
Range
Watch video
▶
Representative product image Product image feedback

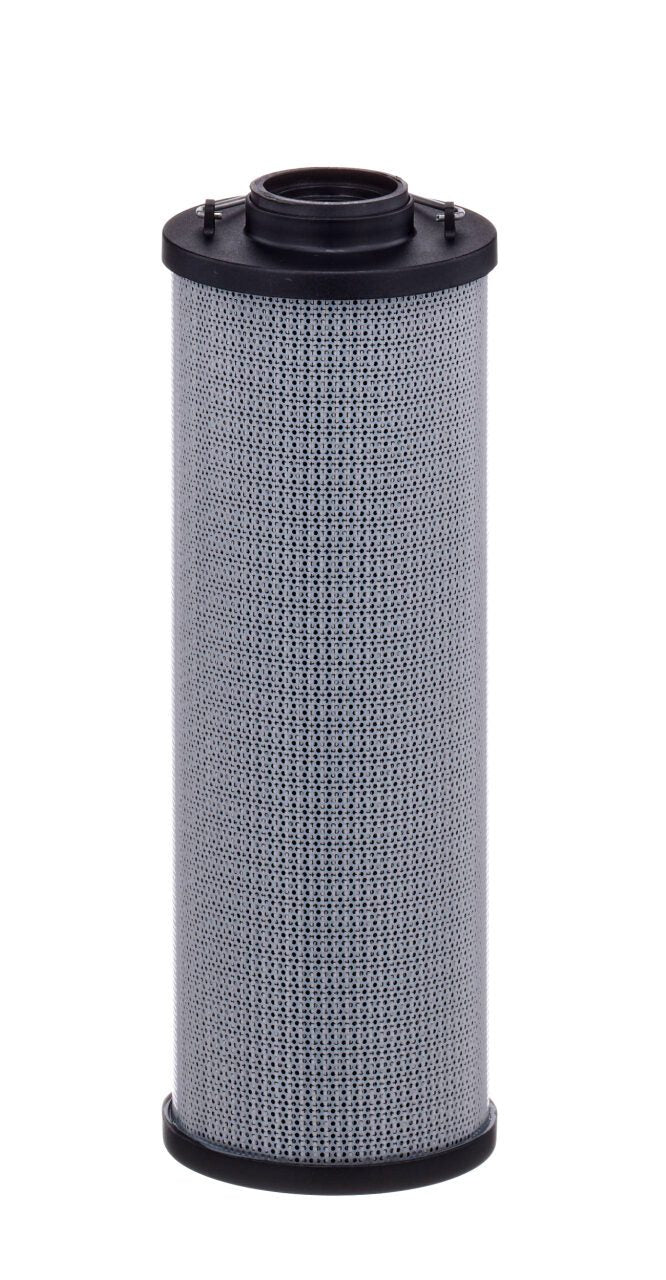

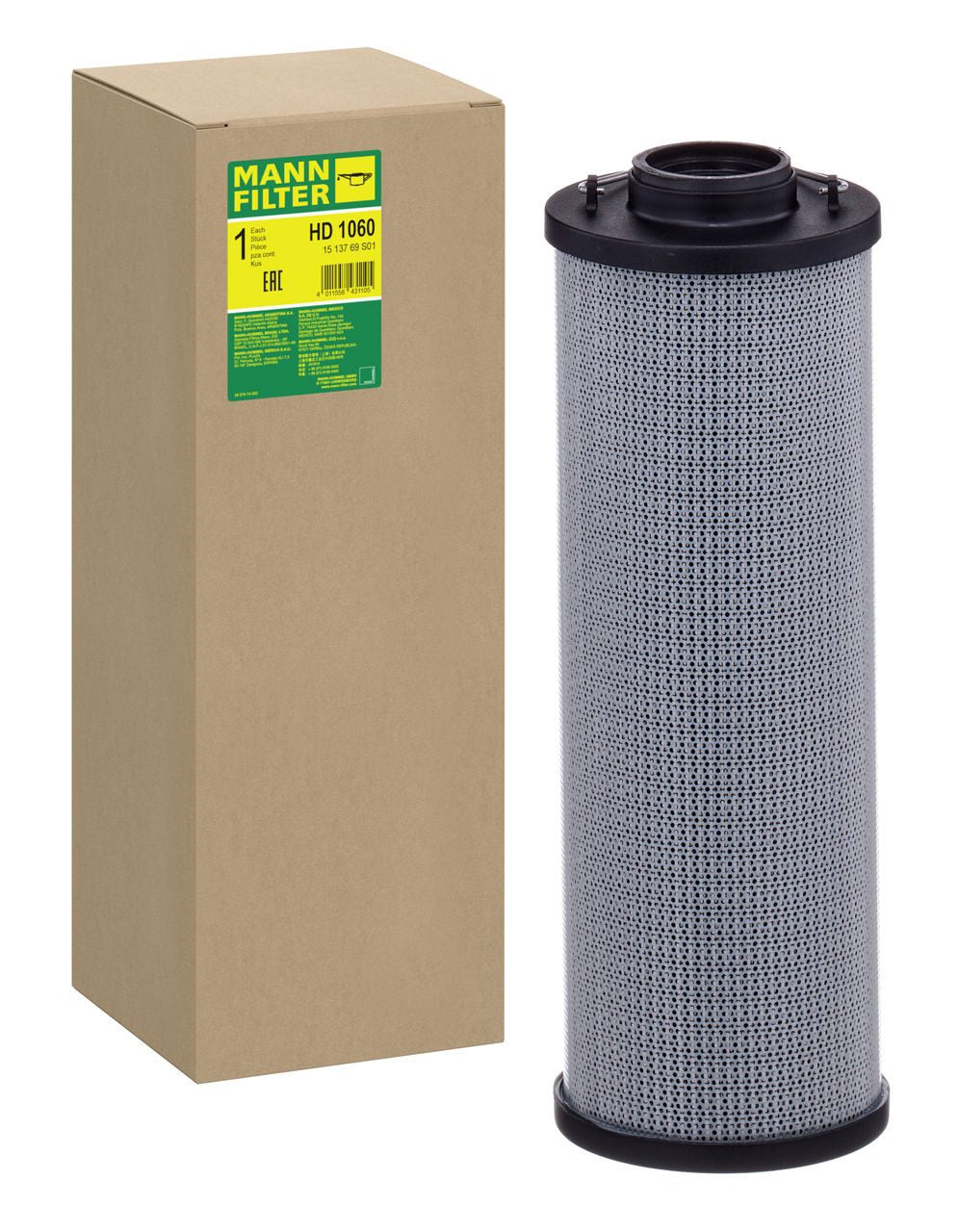

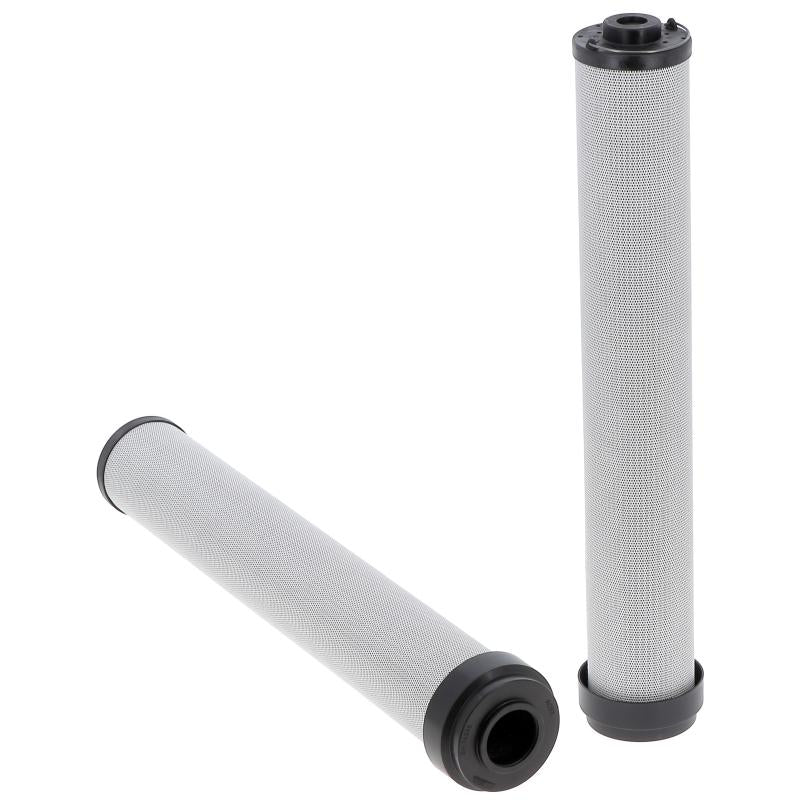

Mann Filter HD 1060 Hydraulics | Replaces the SF Filter HY13400/1

Brand: Mann Filter
Price Match
$137.00
0.0028 m³
Germany
8421.99.90
2.36 kg
0.0064 m³
France
8421.99.90
2.41 kg
0.0064 m³
Italy
8421.99.90
2.41 kg
0.0064 m³
United Kingdom
8421.99.90
1.17 kg
0.0035 m³
United States
8421.99.90
0.79 kg
0.0039 m³
United States
8421.29.80.90
Shipping Terms

Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

Specification

StyleHydraulics
Dimension A 3 3/4"
Dimension B 15/16"
Dimension H 10 13/16"
Bypass Pressure 44 psi

Description

MANN-FILTER hydraulic filter elements for high-pressure filters offer maximum filtration performance and ensure trouble-free operation of the hydraulic system. Thanks to the filter medium, which is specially adapted to the intended use, the finest impurities are separated from the hydraulic fluid.

SF Filter logo

Same Fit-Form & Function

As the Genuine SF Filter HY13400/1

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Mann Filter Warranty

Mann Filter Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Special Filter
Outer Diameter 3.72 in
Inner Diameter 1.8 in
Length 24.65 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

44 PSI
Collapse Pressure 435 PSI
Seal Nitrile
Temperature Range -20 - +210°F
