MicroFit MFHLP33381 Replaces the SF Filter HY11838

MICROFIT MFHLP33381
MICROFIT MFHLP33381

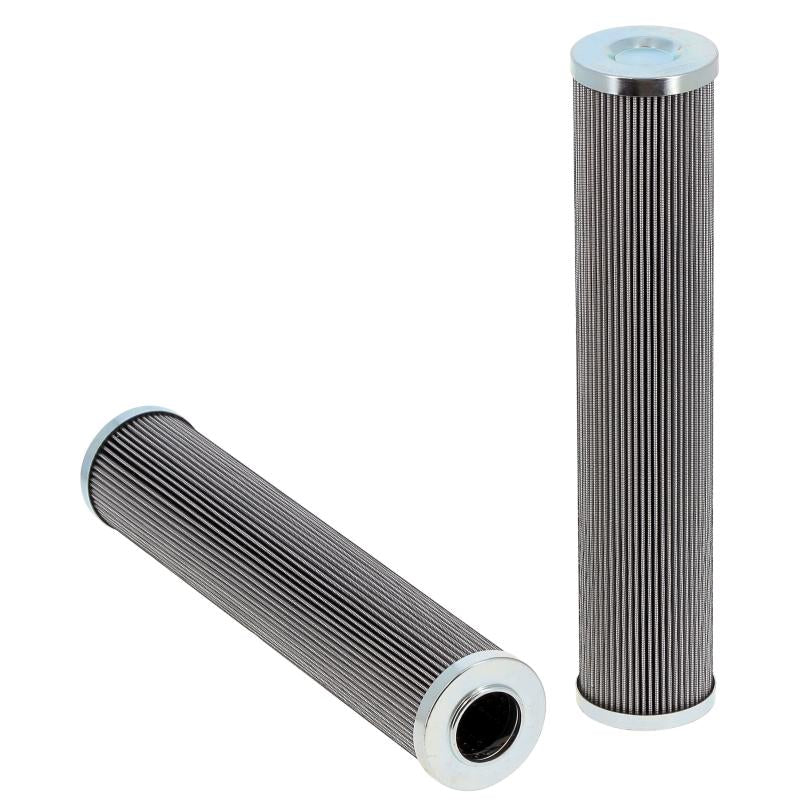

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP33381 Pressure Filter | Replaces the SF Filter HY11838

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP33381 is the MICROFIT® approved replacement to the SF Filter HY11838. Engineered and manufactured in Great Britain the MFHLP33381

Price Match
$153.00
5.78 lbs
0.09 ft³
United Kingdom
8421.99.90
2.62 lbs
0.09 ft³
Italy
8421.99.90
2.65 lbs
0.164 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP33381 is the MICROFIT® approved replacement to the SF Filter HY11838. Engineered and manufactured in Great Britain the MFHLP33381

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 3 1/8"
Inner Diameter 1 11/16"
Length 15 5/8"
Δ Collapse Pressure 435.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine SF Filter HY11838

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 3.15 in
Inner Diameter 1.66 in
Length 15.63 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 435 PSI
Seal Nitrile
Temperature Range -20 - +210°F
