Summary

MicroFit MFHHP40783 Replaces the Hy-Pro HP28HL940WV

MICROFIT MFHHP40783
MICROFIT MFHHP40783
Representative product image Product image feedback

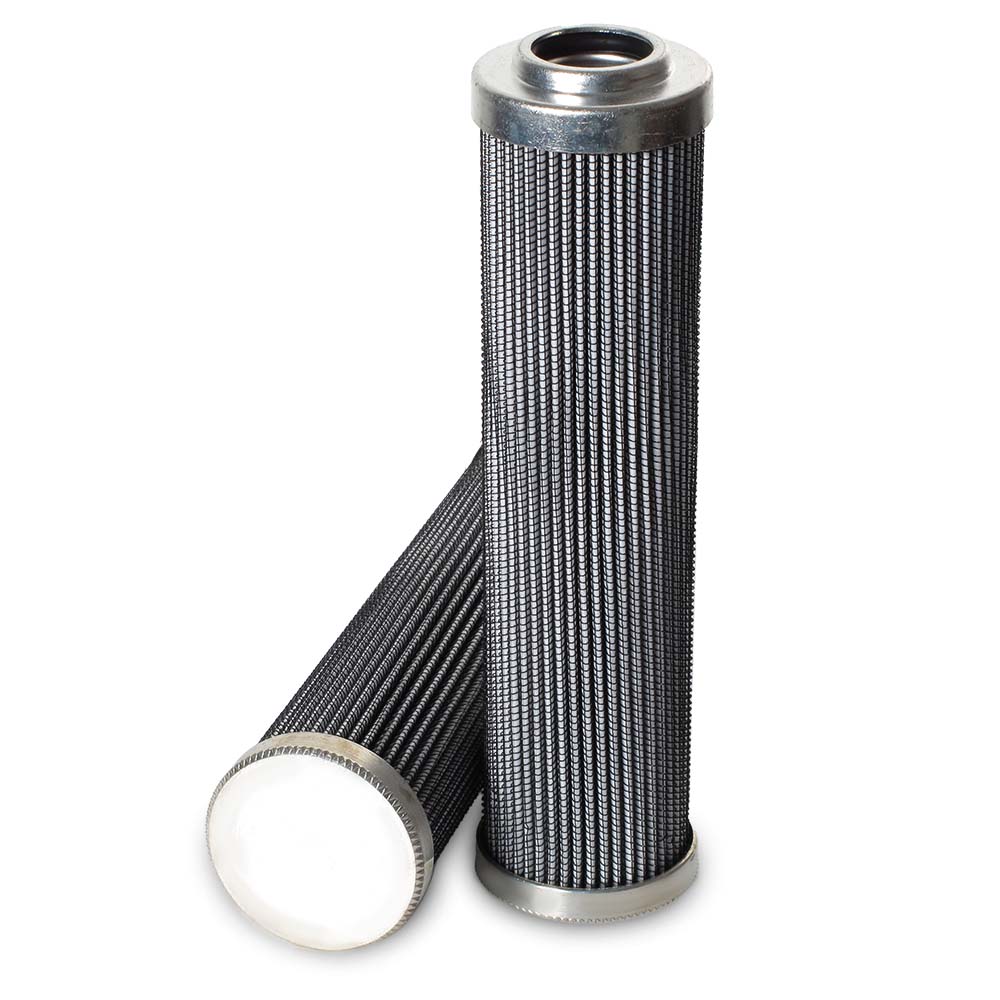

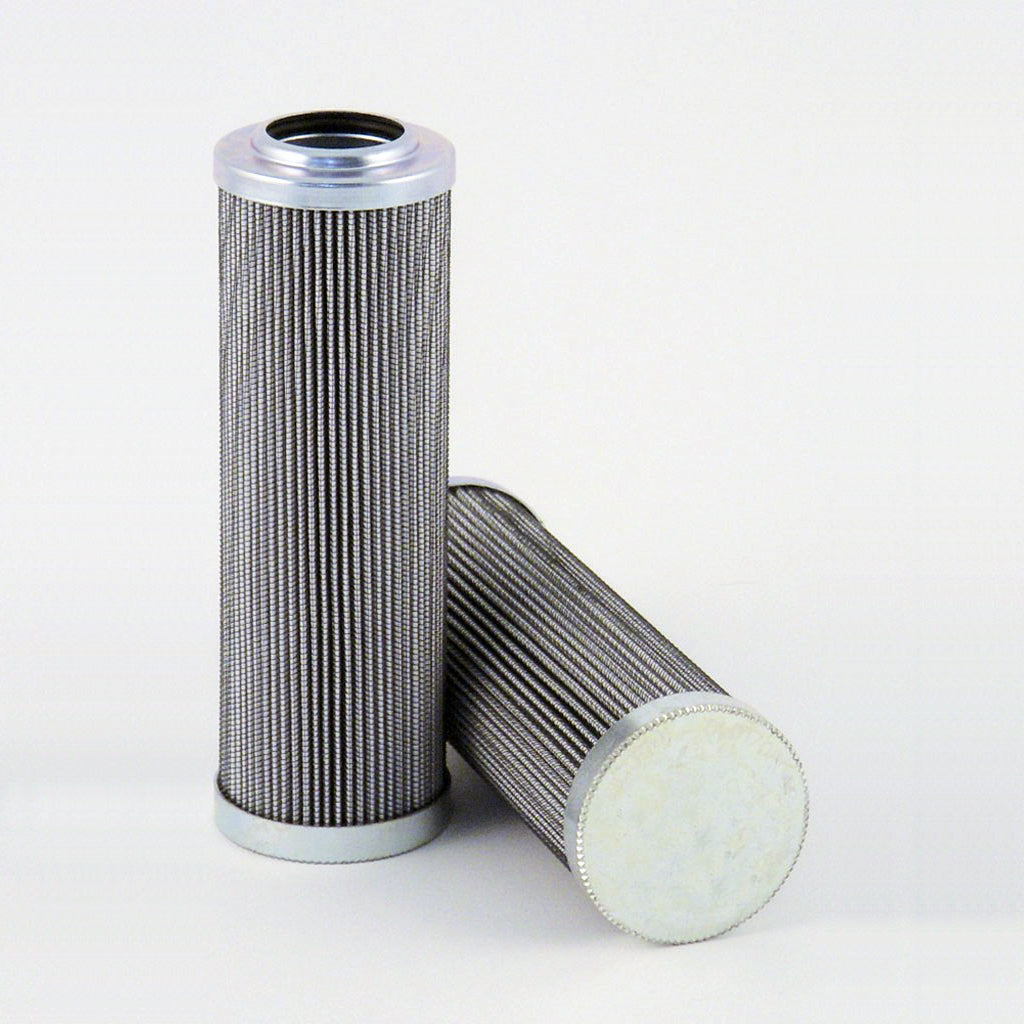

MicroFit® UltraGen III MFHHP40783 Pressure Filter | Replaces the Hy-Pro HP28HL940WV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40783 is the MICROFIT® approved replacement to the Hy-Pro HP28HL940WV. Engineered and manufactured in Great Britain the MFHHP40783

Price Match
$214.00
3.98 lbs
0.029 ft³
United Kingdom
8421.99.90
1.81 lbs
0.029 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40783 is the MICROFIT® approved replacement to the Hy-Pro HP28HL940WV. Engineered and manufactured in Great Britain the MFHHP40783

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 9 1/16"
Δ Collapse Pressure 3045.8 psi
Seal MaterialViton
Temperature Range -10 - +250°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP28HL940WV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 9.06 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Viton
Temperature Range -10 - +250°F
