MicroFit MFHHP40792 Replaces the Hy-Pro HP28HL12130WB

MICROFIT MFHHP40792
MICROFIT MFHHP40792

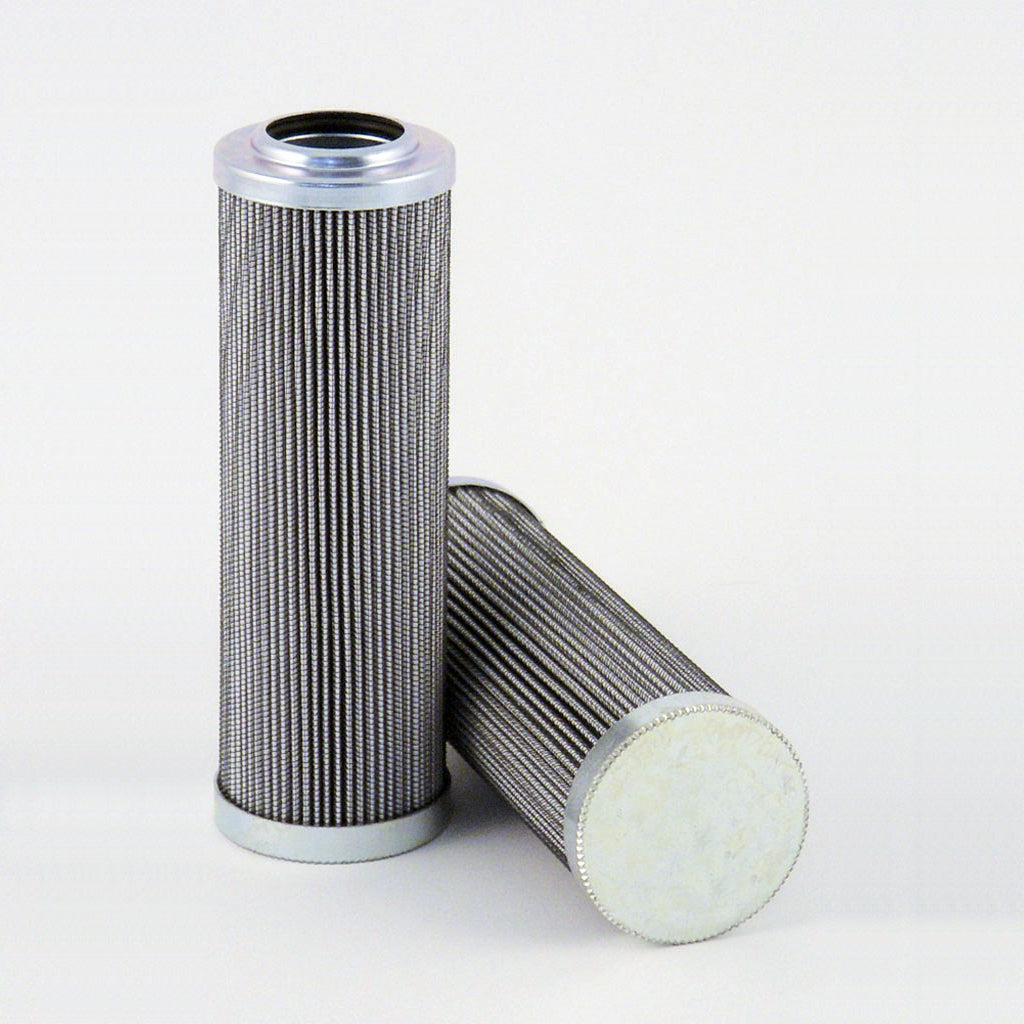

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP40792 Pressure Filter | Replaces the Hy-Pro HP28HL12130WB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40792 is the MICROFIT® approved replacement to the Hy-Pro HP28HL12130WB. Engineered and manufactured in Great Britain the MFHHP40792

Price Match
$233.00
5.36 lbs
0.039 ft³
United Kingdom
8421.99.90
2.45 lbs
0.04 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40792 is the MICROFIT® approved replacement to the Hy-Pro HP28HL12130WB. Engineered and manufactured in Great Britain the MFHHP40792

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 1130µ
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 12 3/16"
Δ Collapse Pressure 3045.8 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP28HL12130WB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
130µ
Efficiency 2
Style Pressure Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 12.2 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 3046 PSI
Seal Nitrile
Temperature Range -20 - +210°F
