MicroFit MFHLP30489 Replaces the Hy-Pro HP16DNL825WSB

HP16DNL825WSB
HP16DNL825WSB
Representative product image Product image feedback

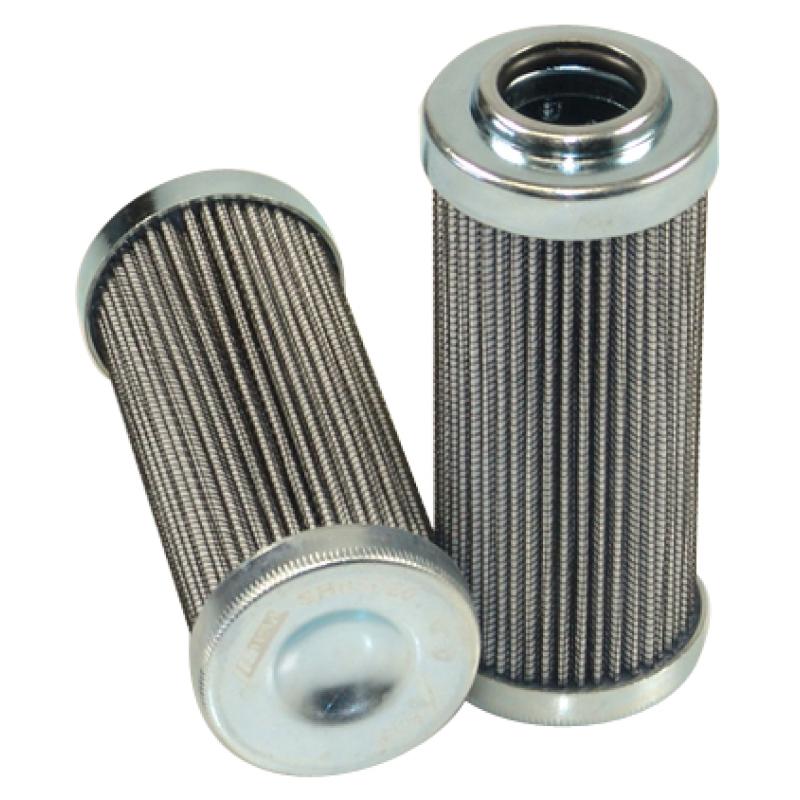

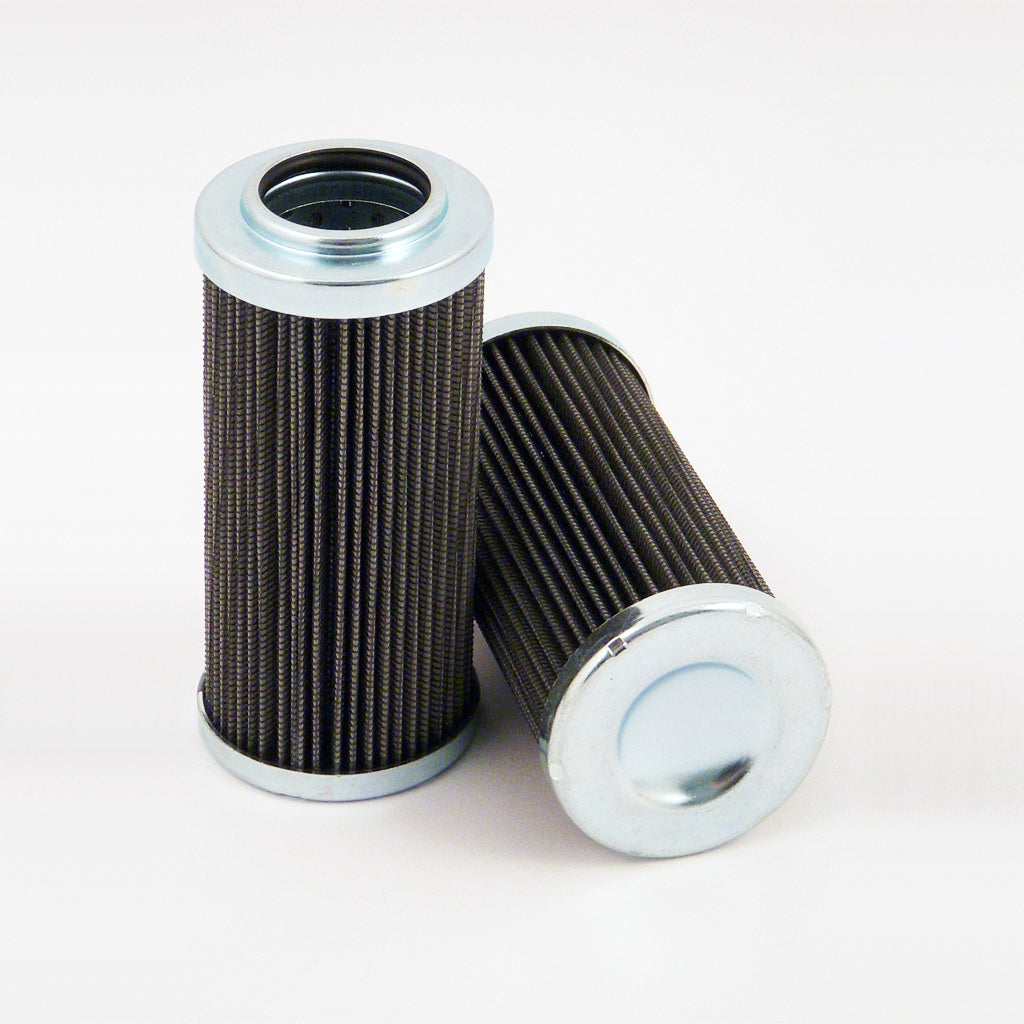

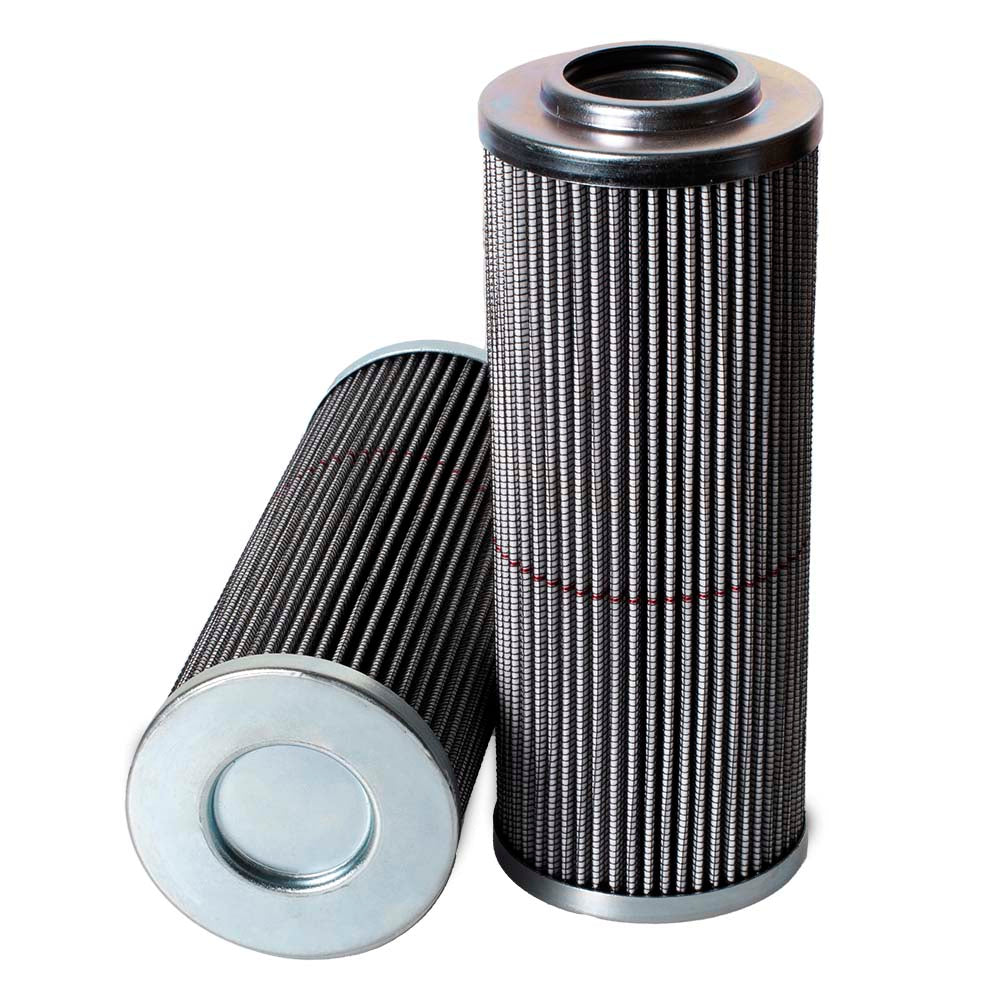

MicroFit® UltraGen III MFHLP30489 Pressure Filter | Replaces the Hy-Pro HP16DNL825WSB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30489 is the MICROFIT® approved replacement to the Hy-Pro HP16DNL825WSB. Engineered and manufactured in Great Britain the MFHLP30489

Price Match
$106.00
1.94 lbs
0.024 ft³
United Kingdom
8421.99.90
0.93 lbs
0.047 ft³
France
8421.99.90
0.88 lbs
0.024 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30489 is the MICROFIT® approved replacement to the Hy-Pro HP16DNL825WSB. Engineered and manufactured in Great Britain the MFHLP30489

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 125µ
Outer Diameter 2 3/8"
Inner Diameter 1 3/8"
Length 7 5/16"
Δ Collapse Pressure 290.1 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP16DNL825WSB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ
Efficiency 2
Style Pressure Filter
Outer Diameter 2.36 in
Inner Diameter 1.35 in
Length 7.32 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 290 PSI
Seal Nitrile
Temperature Range -20 - +210°F
