Summary

MicroFit MFHLP30111 Replaces the MP Filtri HP0505A06NAP01

HP0505A06NAP01
HP0505A06NAP01

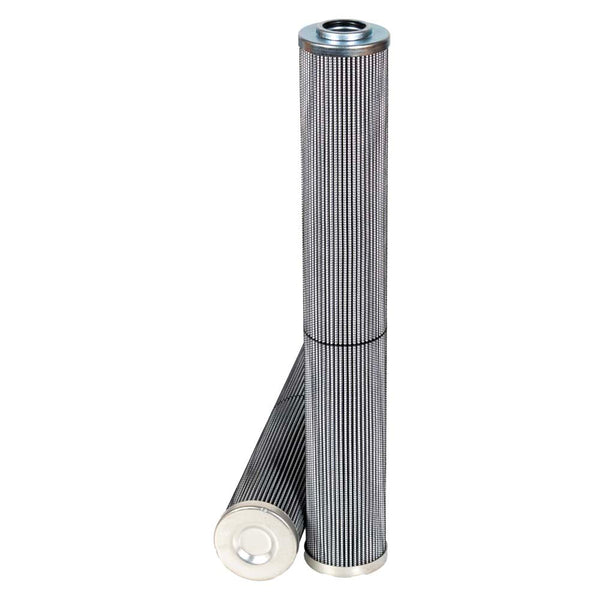

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP30111 Pressure Filter | Replaces the MP Filtri HP0505A06NAP01

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP30111 is the MICROFIT® approved replacement to the MP Filtri HP0505A06NAP01. Engineered and manufactured in Great Britain the MFHLP30111

Price Match
$74.00
0.73 lbs
0.029 ft³
United Kingdom
8421.99.90
0.35 lbs
0.029 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP30111 is the MICROFIT® approved replacement to the MP Filtri HP0505A06NAP01. Engineered and manufactured in Great Britain the MFHLP30111

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 1 15/16"
Inner Diameter 15/16"
Length 12 15/16"
Δ Collapse Pressure 304.6 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri HP0505A06NAP01

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 1.97 in
Inner Diameter 0.96 in
Length 12.95 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 305 PSI
Seal Nitrile
Temperature Range -20 - +210°F
