MicroFit MFHR56788 Replaces the Ikron HHC30086

MICROFIT MFHR56788
MICROFIT MFHR56788
Representative product image Product image feedback

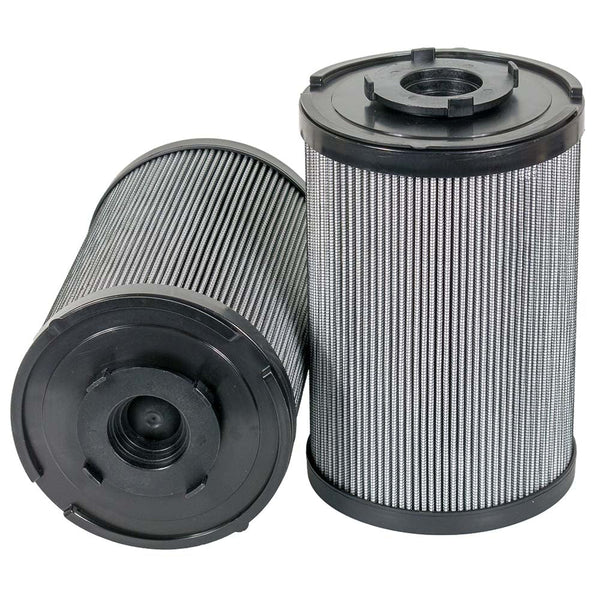

MicroFit® UltraGen III MFHR56788 Return Filter | Replaces the Ikron HHC30086

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56788 is the MICROFIT® approved replacement to the Ikron HHC30086. Engineered and manufactured in Great Britain the MFHR56788

Price Match
$88.00
6.17 lbs
0.122 ft³
United Kingdom
8421.99.90
1.28 lbs
0.122 ft³
Italy
8421.99.90
2.65 lbs
0.166 ft³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56788 is the MICROFIT® approved replacement to the Ikron HHC30086. Engineered and manufactured in Great Britain the MFHR56788

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ
Efficiency 25µ @ β1000
Outer Diameter 5 1/8"
Inner Diameter 2 9/16"
Length 7 7/8"
Bypass Pressure 15 psi
Δ Collapse Pressure 145.0 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Ikron HHC30086

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 5.12 in
Inner Diameter 2.54 in
Length 7.87 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

15 PSI
Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
